H-BLOCK Standard CE Extension Series
Overview

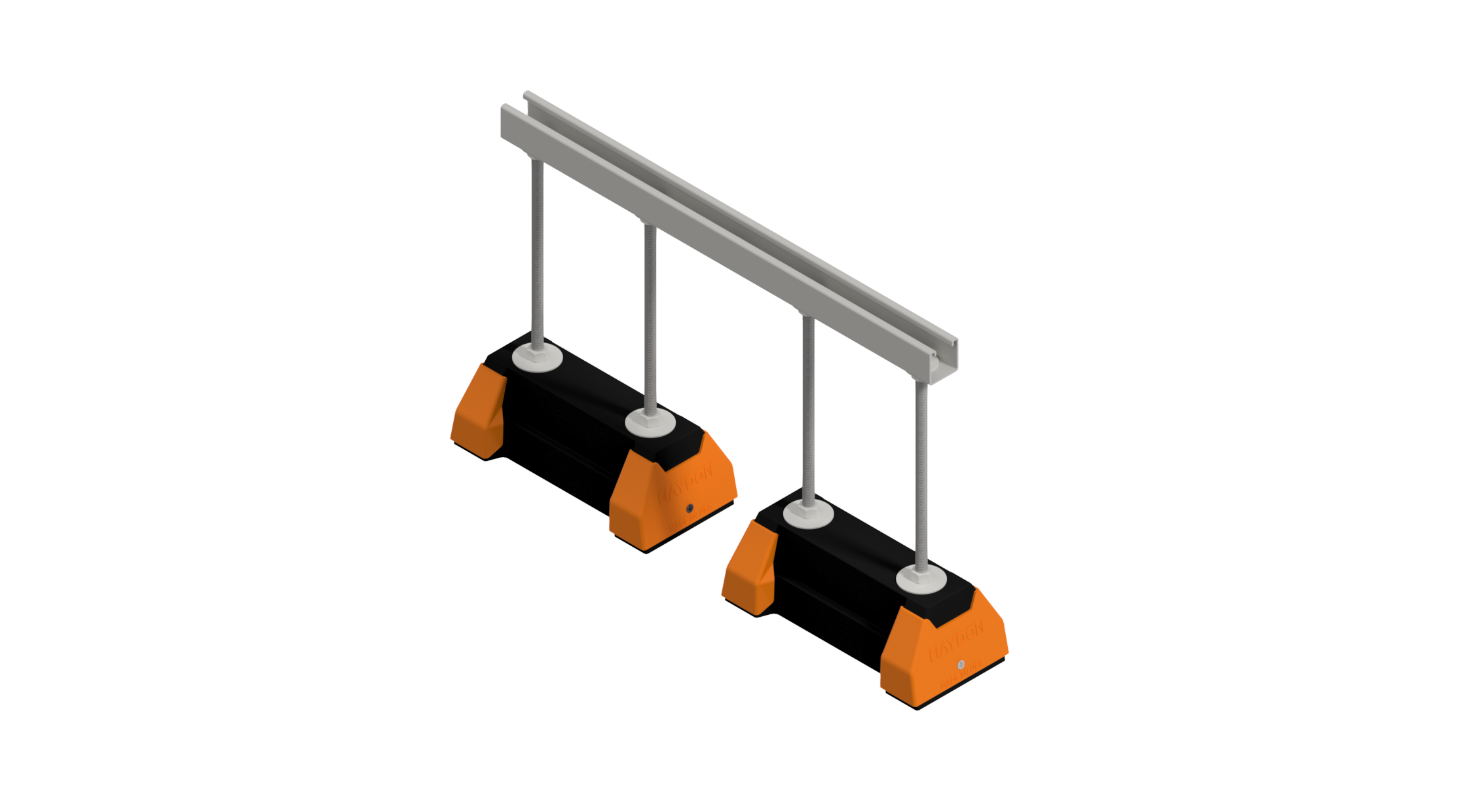

HBS Rooftop Support With Threaded Rod Extension & 14 gauge channel 13/16" H-164 in Pre-Galvanized SteelH-Block Standard CE Extension Series is perfect for supporting natural gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications. The HBS-CE-Extension is UV resistant and suitable for installation on most types of roofing material or other flat surfaces. All rooftop support systems come pre-assembled for easy installation.
- Uniform Load Capacity (single standard block): 2,500 pounds
- Compatibility: Compatible with most rooftop materials or other flat surfaces.
- Bases: 100% recycled rubber
- Strut Channel: H-132 1-5/8" W x 1-5/8" T or H-164 1-5/8" W x 13/16" T pre-galvanized steel in accordance with ASTM A653 SS Grade 33, G90
- End Caps: high visibility ANSI Z535.1 safety orange
H-Block Rooftop Supports have been tested by an accredited independent laboratory to meet the following:
- Compression/Deflection: ASTM D575 Modified
- Ozone Resistance: ASTM D1171 Modified
- Freeze/Thaw Environmental Simulation: load tested after 3 cycles to -40°C
Certifications and Compliance:
- LEED Certifiable
- The Buy American Act
- Build America, Buy America
H-Block Rooftop Supports Literature
Download
Product data sheet
Add to Favorites
Specifications
| Height | Width | # of Bases Required | Strut Length | Strut Size | Base Length | Weight (lbs.) | Uniform Load Capacity (lbs)* | Safety Factor |
|---|---|---|---|---|---|---|---|---|
| 8" (203 mm) | 5" (127 mm) | 1 | 9.312" (237 mm) | 13/16" H-164 | 10-7/8" (276mm) | 6.89 | 1,000 | 2.0 |
Certifications
- LEEDS certifiable
- Meets the Buy American Act
- American Reinvestment Recovery Act (A.R.R.A.)
Technical Information
| Model # | Height | Width | # of Bases Required | Strut Length | Strut Size | Base Length | Weight (lbs.) | Uniform Load Capacity (lbs)* | Safety Factor |
|---|---|---|---|---|---|---|---|---|---|
| HBS-CE10-12-H-164-PG | 12"(305mm) | 5"(127 mm) | 1 | 9.312"(237 mm) | 13/16"H-164 | 10-7/8"(276 mm) | 6.89 | 1,000 | 2.0 |
| HBS-CE24-16-H-132-PG | 16"(406mm) | 5"(127 mm) | 2 | 24.00"(61 0 mm) | 1-5/8"H-132 | 26"(660 mm) | 15.85 | 1,462 | 2.0 |
