C-430
Overview
Top Beam Blamp (up to 2 3/4")H-STRUT Top Beam Clamps are designed to secure all H-STRUT 1-5/8" wide channels, or threaded rod, to beams or supports for the purpose of running piping, conduit or tubing. All H-STRUT fittings are manufactured from 1/4" thick carbon steel or cast malleable iron. Recommended for use under roof installations with bar joist type construction where thickness of joist does not exceed 1-1/4 inch. Specify model, rod size and finish when ordering. Please contact us for any other clamps you may need.
Download
Product data sheet
Add to Favorites
Specifications

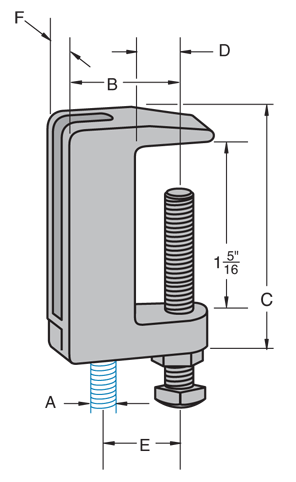

| Catalog No. | Rod Size A | B | C | D | E | F | Wt./100 Pcs. |
|---|---|---|---|---|---|---|---|
| C-430-1 | 3/8" | 1-7/16" | 2" | 3/4" | 1-3/16" | 3/4” | 38 |
| C-430-2 | 1/2" | 1-5/8" | 2-1/16" | 3/4” | 1-1/4" | 7/8" | 49 |
| C-430-3 | 5/8" | 1-3/4" | 2-1/4" | 3/4” | 1-1/4" | 1" | 66 |
| C-430-4 | 3/4" | 1-7/8" | 2-3/8" | 3/4" | 1-3/8" | 1-3/8" | 83 |
Material
- Malleable Iron
Finish
- Plain or Electro-Galvanized
