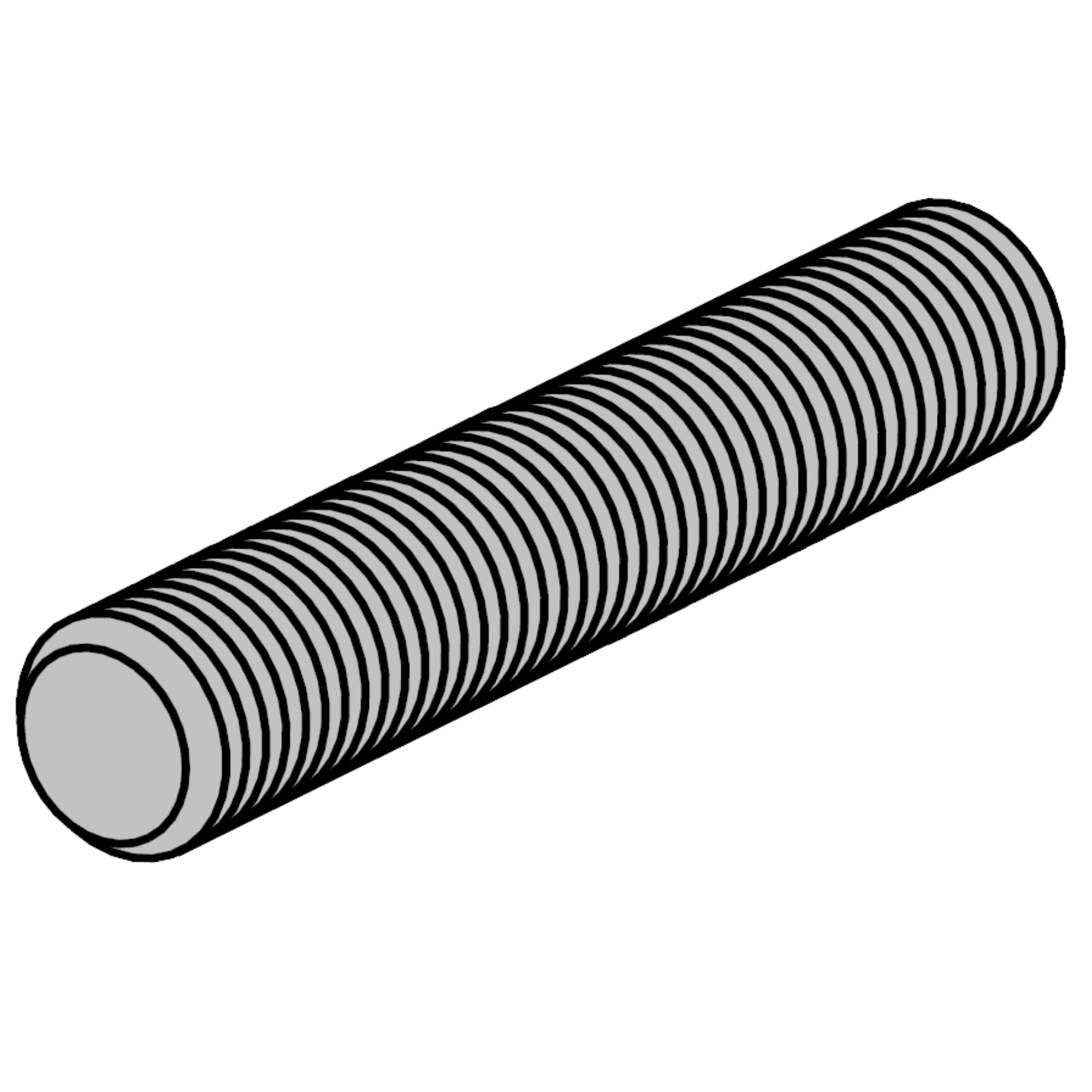

All-Thread Rod
Overview
All-Thread RodAll-Thread Rod
H-STRUT® Threaded Rods are a versatile fastener product used for multiple purposes, including mounting and hanging. Threaded rods are primarily used to join and stabilize a wide range of structures and objects from ceilings or walls. Available in multiple finishes, diameters and lengths.
H-Strut threaded rods are manufactured from mild steel bars and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in stainless steel.
Download
Product data sheet
Add to Favorites
Specifications
Material
H-STRUT Thread Rods are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.
Finish
All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.
Ordering
On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.
Technical Information
Additional Lengths and Parts
| Diameter | Thd. | Wt./100 Ft. |
|---|---|---|
| 1/4" | 20 | 12 |
| 3/8" | 16 | 30 |
| 1/2" | 13 | 54 |
| 5/8" | 11 | 85 |
| 3/4" | 10 | 125 |
| 7/8" | 9 | 169 |
| 1" | 8 | 220 |
