Channel Nuts with Regular Spring (N-820 Series)
Overview

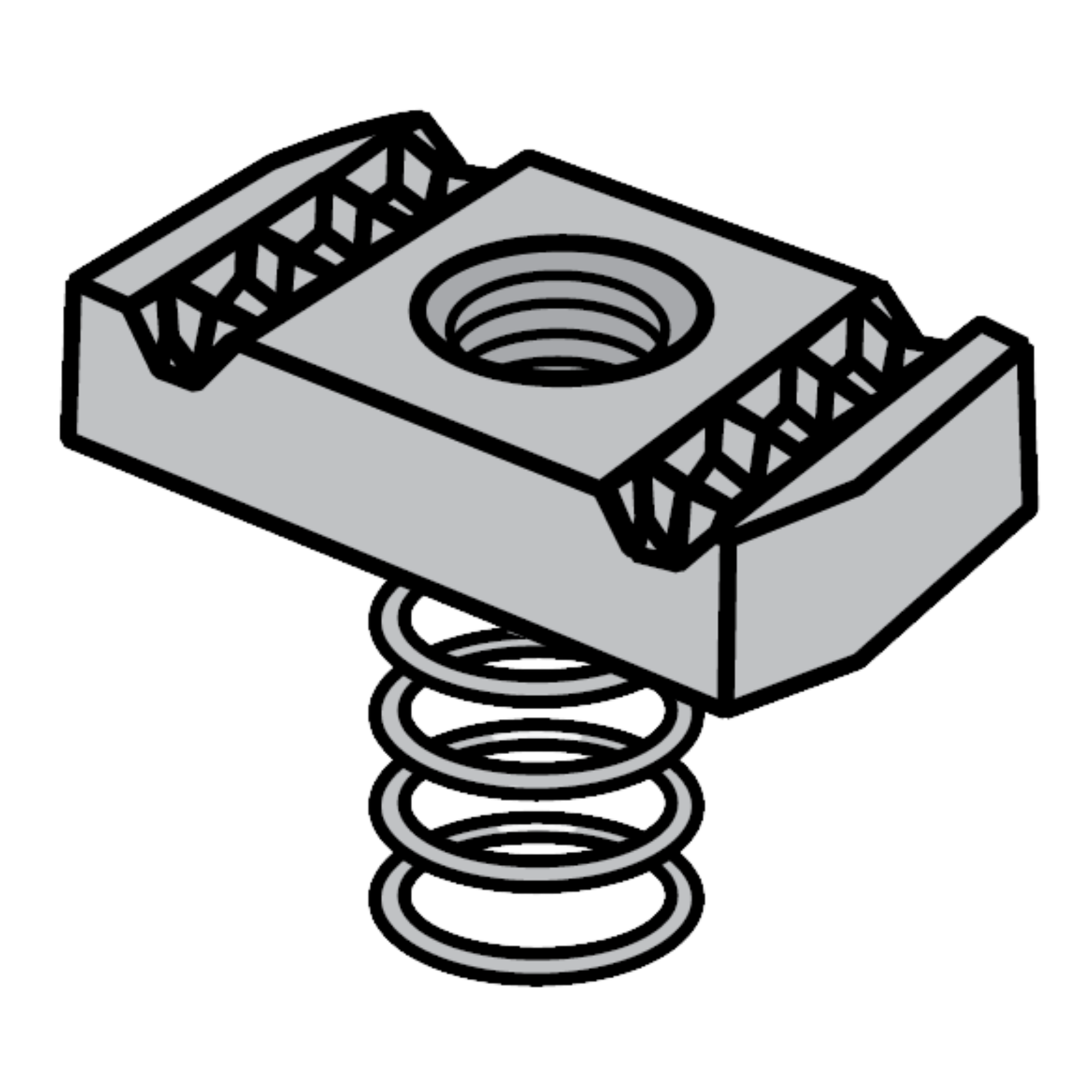

N-820 SeriesH-Strut Channel Nuts with Regular Spring are designed with specially formed teeth in the parallel channel recesses to grip the returned lip of the channel. The shearing action of the teeth assures positive locking of the H-Strut channels to the fittings.
Download
Product data sheet
Add to Favorites
Specifications
Material
H-STRUT Grip Lock Nuts With Regular Spring are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.
Finish
All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.
Ordering
On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.
Technical Information
| Cat. No. | Size | Thd. | Thk. | Wt./100 Pcs. | Channel |
|---|---|---|---|---|---|
| N-820 | 1/4" | 20 | 1/4" | 7 | H-132, H-134, H-142 |
| N-821 | 3/8" | 16 | 3/8" | 10 | H-132, H-134, H-142 |
| N-822 | 1/2" | 13 | 3/8" | 10 | H-132, H-134, H-142 |
| N-823 | 1/2" | 13 | 1/2" | 13 | H-132, H-134, H-142 |
| N-824 | 5/8" | 11 | 7/16" | 23 | H-132, H-134, H-142 |
| N-825 | 3/4" | 10 | 7/16" | 20 | H-132, H-134, H-142 |
| N-828 | 5/16" | 18 | 3/8" | 7 | H-132, H-134, H-142 |
| N-829 | 7/8" | 9 | 7/16" | 17 | H-132, H-134, H-142 |
