Channel Nuts without Spring (N-800 Series)
Overview

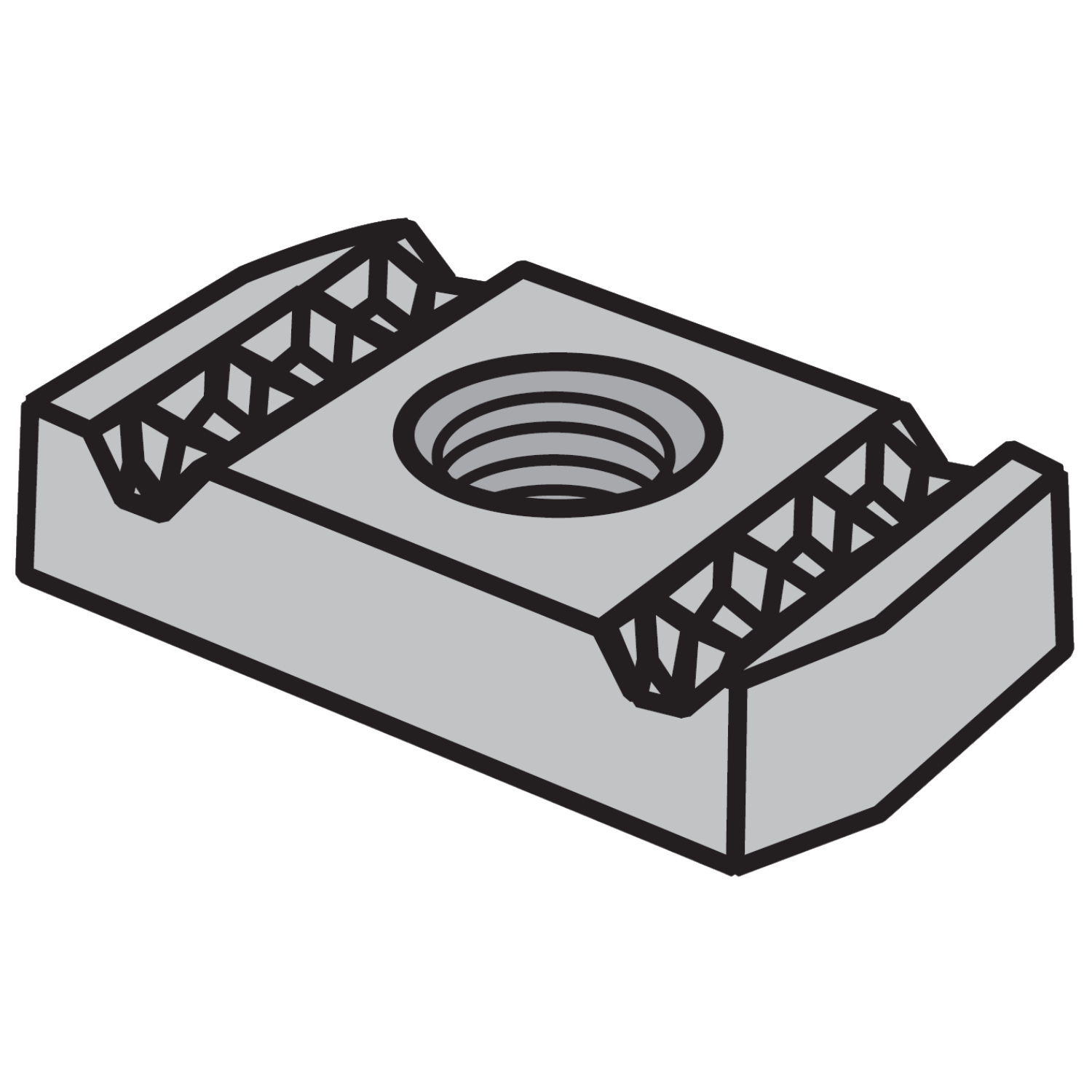

N-800 SeriesH-Strut Channel Nuts without Spring designed with specially formed teeth in the parallel channel recesses to grip the returned lip of the channel. The shearing action of the teeth assures positive locking of the H-Strut channels to the fittings.
Download
Product data sheet
Add to Favorites
Specifications
Material
H-STRUT Grip Lock Nuts Without Spring are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.
Finish
All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.
Ordering
On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.
Technical Information
| Cat. No. | Size | Thd. | Thk. | Wt./100 Pcs. | Channel |
|---|---|---|---|---|---|
| N-800 | 1/4" | 20 | 1/4" | 6 | All H-Strut |
| N-801 | 3/8" | 16 | 3/8" | 9 | All H-Strut |
| N-802 | 1/2" | 13 | 3/8" | 9 | All H-Strut |
| N-803 | 1/2" | 13 | 1/2" | 12 | H-112, H-122, H-132, H-134, H-142 |
| N-804 | 5/8" | 11 | 7/16" | 20 | H-112, H-122, H-132, H-134, H-142 |
| N-805 | 3/4" | 10 | 7/16" | 18 | H-112, H-122, H-132, H-134, H-142 |
| N-806 | 5/8" | 11 | 3/8" | 14 | All H-Strut |
| N-807 | 3/4" | 10 | 3/8" | 14 | All H-Strut |
| N-808 | 5/16" | 18 | 3/8" | 7 | All H-Strut |
| N-809 | 7/8" | 9 | 7/16" | 16 | All H-Strut except H-162 & H-164 |
