M-611
Overview

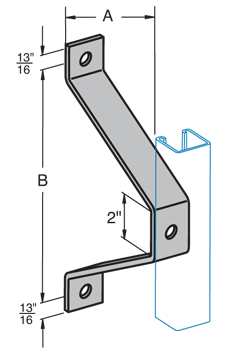

Wall BracketH-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8 wide channels. All H-STRUT fittings are manufactured from 1/4 thick carbon steel, 1-5/8 wide, all holes are 9/16 diameter, spaced 1-7/8 on center and 13/16 from the end.
Download
Product data sheet
Add to Favorites
Specifications
| Model | A | B | Wt./100 Pcs. |
|---|---|---|---|
| M-611-1 | 2-3/8" | 6" | |
| M-611-2 | 4-3/8" | 8" | |
| M-611-3 | 6-3/8" | 10" | |
| M-611-4 | 8-3/8" | 12" | |
| M-611-5 | 10-3/8" | 14" |
Material
- Hot Rolled Steel Sheet - ASTM A-1011
- Cold Rolled Steel Sheet - ASTM A-1008
- Stainless Steel-Type 304/316 - ASTM A-240
- Aluminum Fitting - ASTM B-221
Finish
- Electro Galvanized - ASTM B-633
- Hot Dipped Galvanized - ASTM A-123
- Zinc Trivalent Chromium - ASTM B-633-85
- Powder Coated Supr-Green - ASTM B-117
- PVC Coating - Available Upon Request
Technical Information
| Model | A | B | Wt.100/Pcs. |
|---|---|---|---|
| B-603-1 | 16-5/8" | 13-5/8" | 232 |
| B-603-2 | 12" | 10-1/8" | 175 |
