H-BLOCK Mini Hinged Pipe Clamp Series
Overview

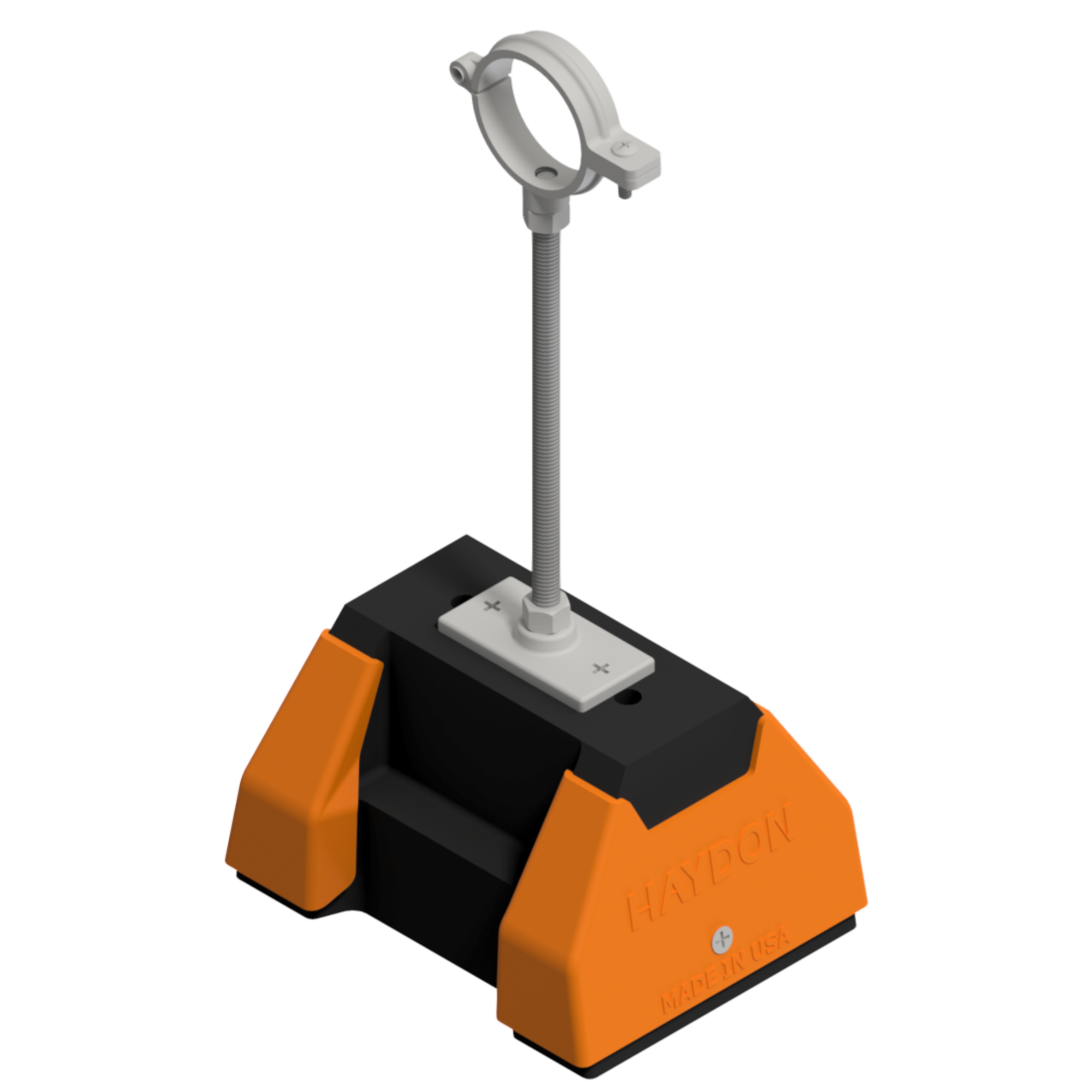

HBM Rooftop Support With Pipe Clamp and Threaded Rod in Electro Galvanized SteelH-Block Mini Pipe Clamp Series is designed specifically for single pipe supporting. This series includes a galvanized pipe clamp and the base is UV resistant and manufactured utilizing 100% recycled rubber. It requires no roof penetration and is suitable for installation on most types of roofing materials or other flat surfaces and comes pre-assembled.
- Uniform Load Capacity (single mini block): 400 pounds
- Compatibility: Compatible with most rooftop materials or other flat surfaces
- Bases: 100% recycled rubber
- End Caps and/or paint: high visibility ANSI Z535.1 safety orange
H-Block Rooftop Supports have been tested by an accredited independent laboratory to meet the following:
- Compression/Deflection: ASTM D575 Modified
- Ozone Resistance: ASTM D1171 Modified
- Freeze/Thaw Environmental Simulation: load tested after 3 cycles to -40°C
Certifications and Compliance:
- LEED Certifiable
- The Buy American Act
- Build America, Buy America
H-Block Rooftop Supports Literature
Download
Product data sheet
Add to Favorites

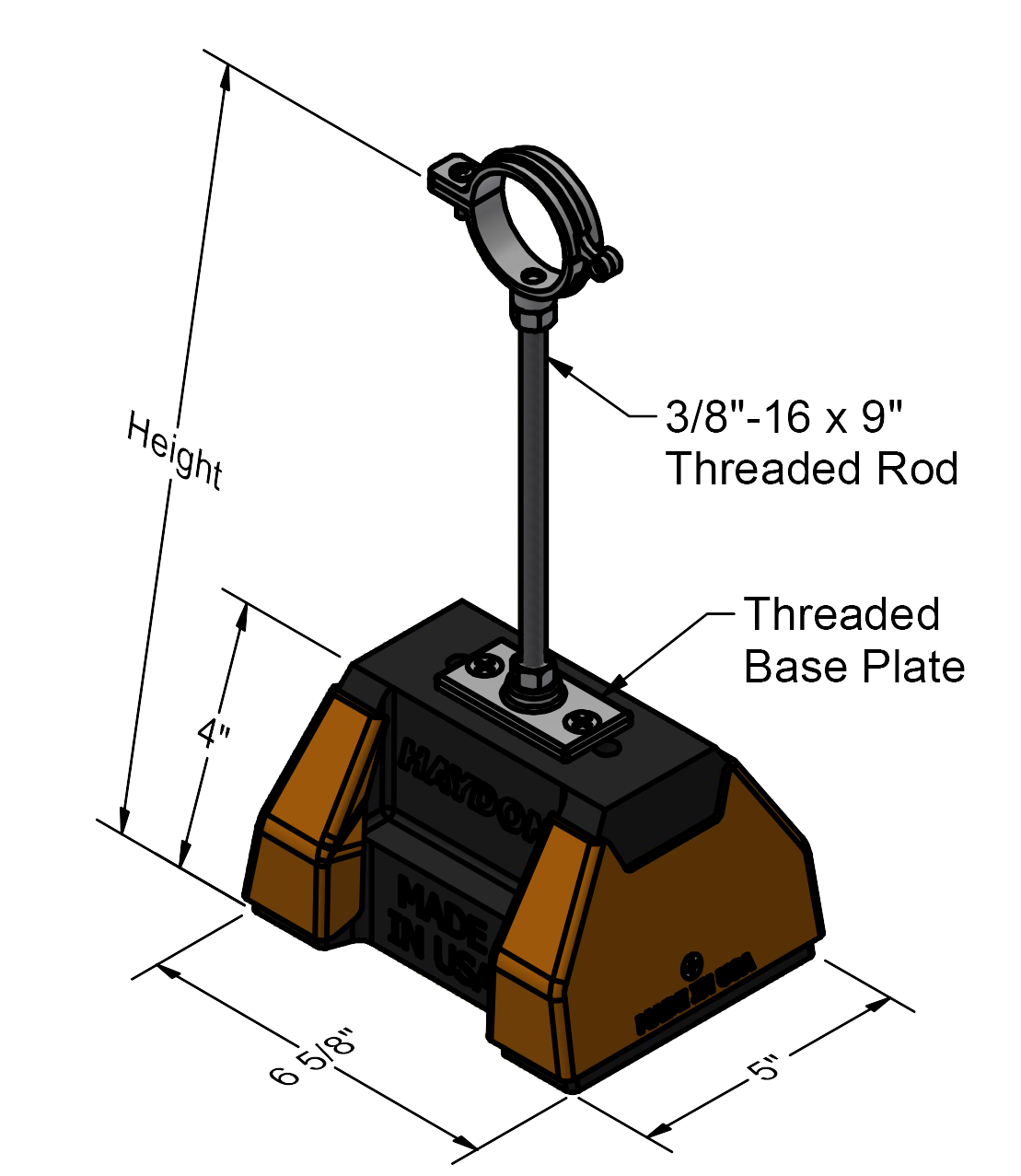

Specifications
| Overall Height | Width | Base Length | Weight (lbs) | Uniform Load Capacity (lbs)* | Safety Factor |
|---|---|---|---|---|---|
| 10"-12" (254mm - 305mm) | 5" (127mm) | 6-5/8" (168mm) | 2.7 | 125 | 2.0 |
Certifications
- LEED certifiable
- Meets the Buy American Act
- American Reinvestment Recovery Act (A.R.R.A.)
Technical Information
| Model # | Part # | Weight (lbs) | Overall Height | Width | Base Length | Total Load From Pipe (lbs)* | Safety Factor |
|---|---|---|---|---|---|---|---|
| HBM-HPC-½ IN-EG | 80804 | 2.7 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
| HBM-HPC-¾ IN-EG | 80805 | 2.8 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
| HBM-HPC-1 IN-EG | 80806 | 2.9 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
| HBM-HPC-1-¼ IN-EG | 80807 | 3.0 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
| HBM-HPC-1-½ IN-EG | 80808 | 3.1 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
| HBM-HPC-2 IN-EG | 80809 | 3.3 | 10" – 12" (254 - 305 mm) | 5" (127 mm) | 6-5/8" (168 mm) | 250 | 2 |
