H-BLOCK Mega with H-132 Channel

Overview

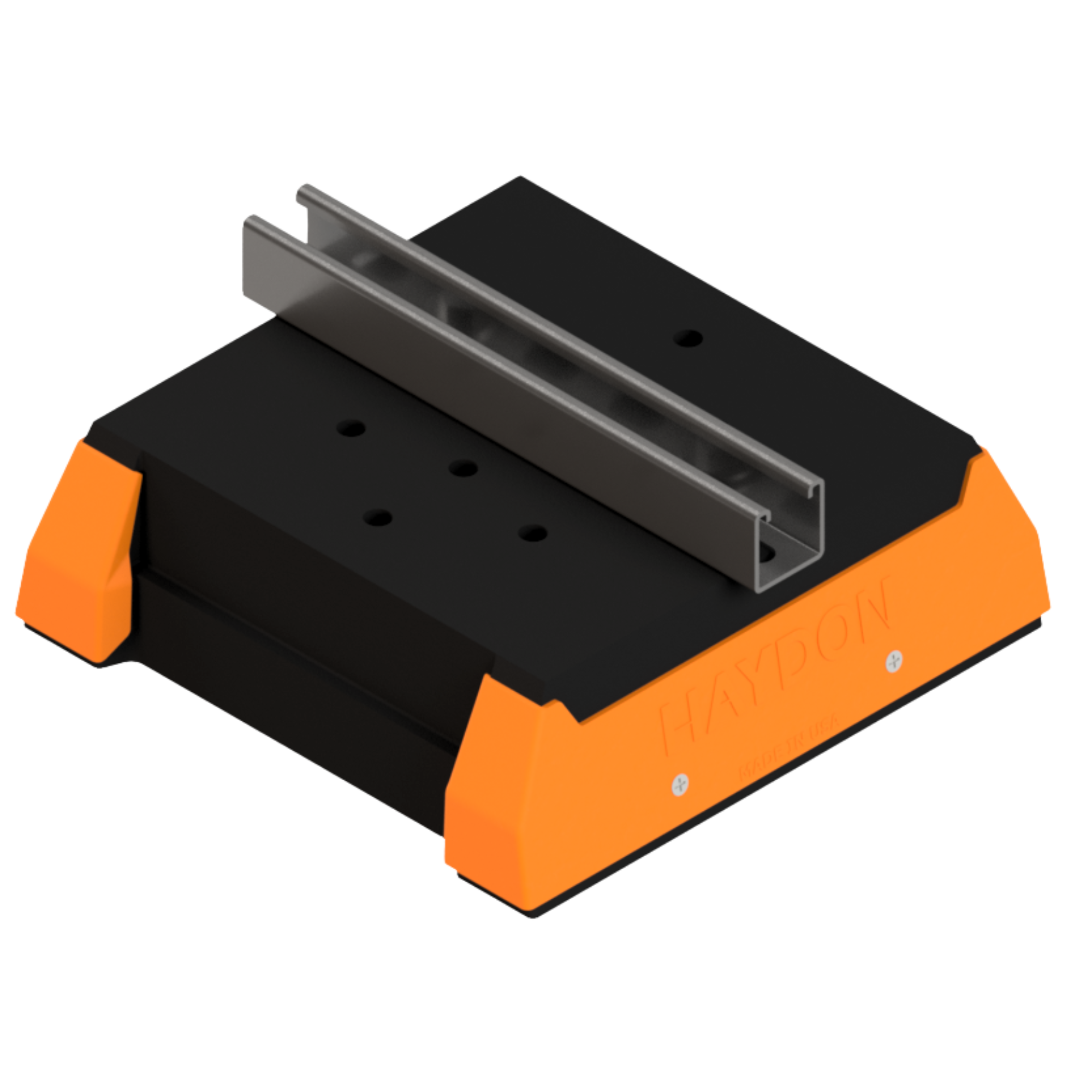

H-Block Mega Support with 12 Gauge Channel 1-5/8" H-132 in Pre-Galvanized Steel Channel

H-Block Mega Rooftop Support Series are suitable to support natural gas and refrigeration piping systems, light to heavy pipe hanger support systems, adjustable and fixed duct support systems and many other applications. The H-Block Mega Series has 1 5/8” pre-galvanized channel, is UV resistant and manufactured utilizing 100% recycled rubber. It has no roof penetration, is suitable for installation on most types of roofing material or other flat surfaces and comes pre-assembled.

• Uniform Load Capacity (single mega block): 7,500 pounds
• Bases: 100% recycled rubber
• Corners: high visibility ANSI Z535.1 safety orange

H-Block Rooftop Supports have been tested by an accredited independent laboratory to meet the following:

• Compression/deflection: ASTM D575 Modified
• Ozone resistance: ASTM D1171 Modified
• Freeze/thaw environmental simulation: load tested after 3 cycles to -40°C
