HB-MEGA-Pipe Hanger 48"
Overview
HB-MEGA-PH-48" Heavy Duty Pipe Hanger Support Series with H-122A PG or H-112A PG Top Support- Item:Â HB-MEGA-PH-48-36-H-122A-PG
- H-Block Mega HB-MEGA-PH 48" Heavy duty pipe hanger support comes with 6 bases, cross beams and 12 gauge channel 4-7/8" H-122A or 6-1/2" H-112A.
- The HB-MEGA-PH is specifically designed for supporting piping.
- All rooftop support systems come pre-assembled for easy installation.
- Compatible with most rooftop materials or other flat surfaces.
- UV resistant
- Dampens vibrations
- High visibility safety corners coated with ANSI orange #2535.1-1998
- Resistant to freeze and thaw (ASTM D1171 modified)
- ASTM D575 medthod B-modified compression/deflection testing.
- All hardware required for assembly is included
- Does not include clevis hangers, only shown for your reference
Download
Product data sheet
Add to Favorites
Specifications
Material:
Base is 100% recycled rubber tires
Finish
Pre-galvanized ASTM 653 steel
Other Finishes Available
- Hot dipped galvanized ASTM A-123
- Zinc trivalen chromium ASTM B-633-85
- Powder coated spr-green ASTM B-117
- PVC coating 40ML thickness (available upon request only).
Technical Information

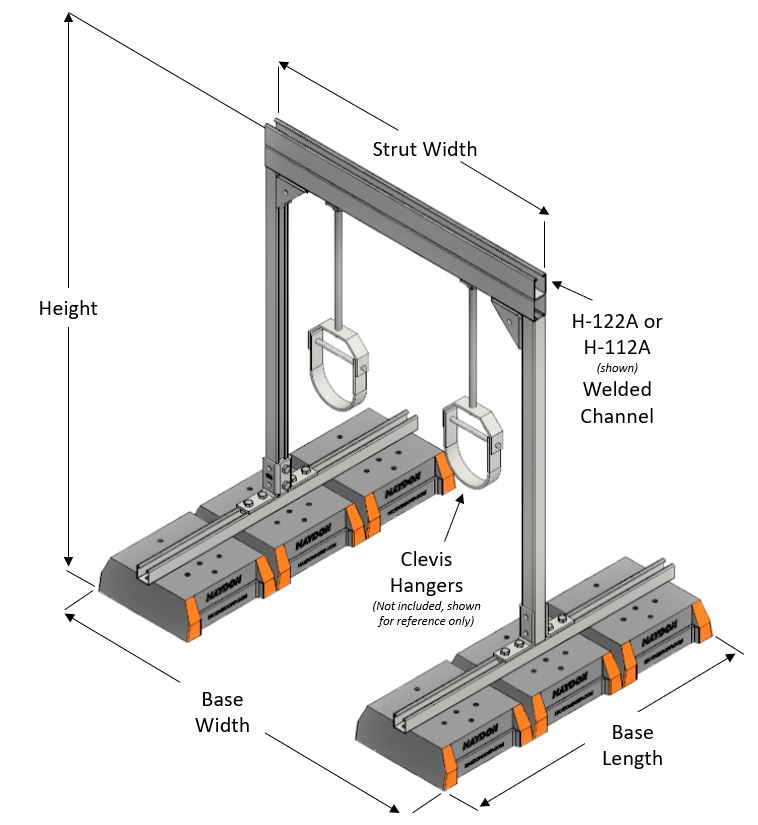

HB-MEGA-PH-48" Heavy Duty Pipe Hanger Support Series with H-122APG Top Support
| Model No. | Height | Strut Width | Base Width | Base Length | No. of Bases | Weight (lbs) | Uniform Load Capacity (lbs) | Safety Factor |
|---|---|---|---|---|---|---|---|---|
| HB-MEGA-PH-48-36-H-122A-PG | 48" (1219mm) | 36" (914mm) | 46 3/8" (1180mm) | 36" (914mm) | 6 | 138 | 4,385 | 2.0 |
| HB-MEGA-PH-48-48-H-122A-PG | 48" (1219mm) | 48" (1219mm) | 58 3/8" (1485mm) | 36" (914mm) | 6 | 143 | 4,091 | 2.0 |
| HB-MEGA-PH-48-60-H-122A-PG | 48" (1219mm) | 60" (1524mm) | 70 3/8" (1790mm) | 36" (914mm) | 6 | 148 | 3,276 | 2.0 |
| HB-MEGA-PH-48-72-H-122A-PG | 48" (1219mm) | 72" (1829mm) | 82 3/8" (2095mm) | 36" (914mm) | 6 | 153 | 2,730 | 2.0 |
HB-MEGA-PH-48" Heavy Duty Pipe Hanger Support Series with H-112A PG Top Support
| Model No. | Height | Strut Width | Base Width | Base Length | No. of Bases | Weight (lbs) | Uniform Load Capacity (lbs) | Safety Factor |
|---|---|---|---|---|---|---|---|---|
| HB-MEGA-PH-48-36-H-112A-PG | 48" (1219mm) | 36" (914mm) | 46 3/8" (1180mm) | 36" (914mm) | 6 | 142 | 5,788 | 2.0 |
| HB-MEGA-PH-48-48-H-112A-PG | 48" (1219mm) | 48" (1219mm) | 58 3/8" (1485mm) | 36" (914mm) | 6 | 148 | 5,788 | 2.0 |
| HB-MEGA-PH-48-60-H-112A-PG | 48" (1219mm) | 60" (1524mm) | 70 3/8" (1790mm) | 36" (914mm) | 6 | 154 | 5,418 | 2.0 |
| HB-MEGA-PH-48-72-H-112A-PG | 48" (1219mm) | 72" (1829mm) | 82 3/8" (2095mm) | 36" (914mm) | 6 | 161 | 4,510 | 2.0 |
