H-BLOCK Mega Pipe Hanger Series
Overview

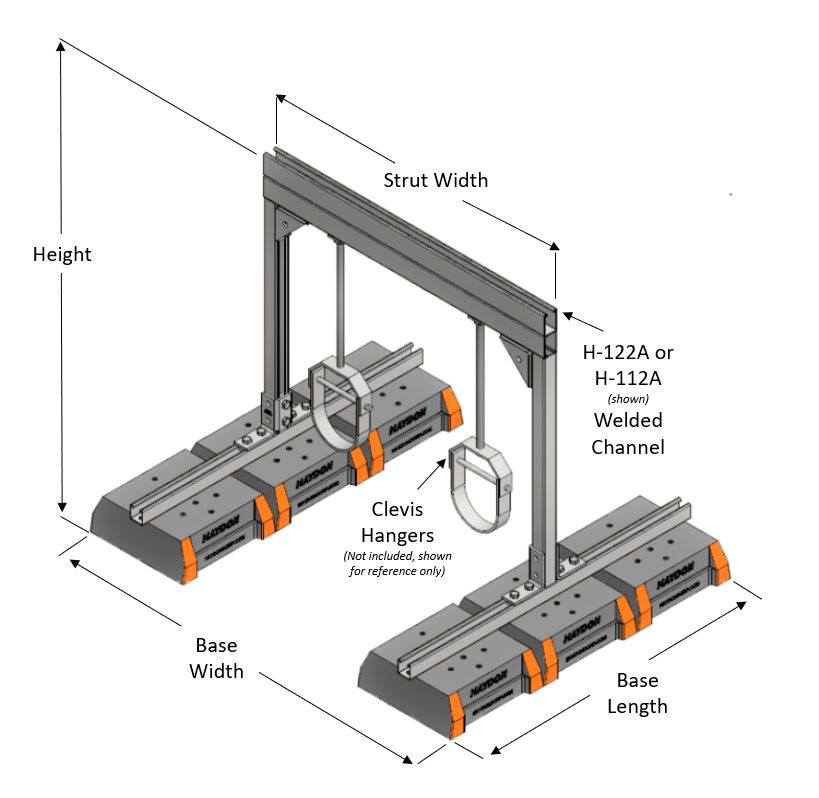

HB-MEGA-PH-36" Heavy Duty Pipe Hanger Support Series with H-122A PG or H-112A PG Top SupportThe H-BLOCK Mega Pipe Hanger Series is designed to support piping while maintaining compatibility with most rooftop materials and flat surfaces.
Key performance features include:
- Pre-assembled systems for simplified installation
- Compatible with most rooftop membranes
- UV resistant materials
- Vibration dampening design
- High-visibility safety corners coated in ANSI orange #25351-1998
- Freeze-thaw resistant (ASTM D1171 modified)
- Compression and deflection tested per ASTM D575 Method B (modified)
- All required assembly hardware included
Available Configurations
- 36" Span (HB-MEGA-PH-36-36-H-122A-PG)
- 48" Span (HB-MEGA-PH-48-36-H-122A-PG)
Both configurations include:
- Six bases
- Cross beams
- 12-gauge channel (4-7/8" H-122A or 6-1/2" H-112A)

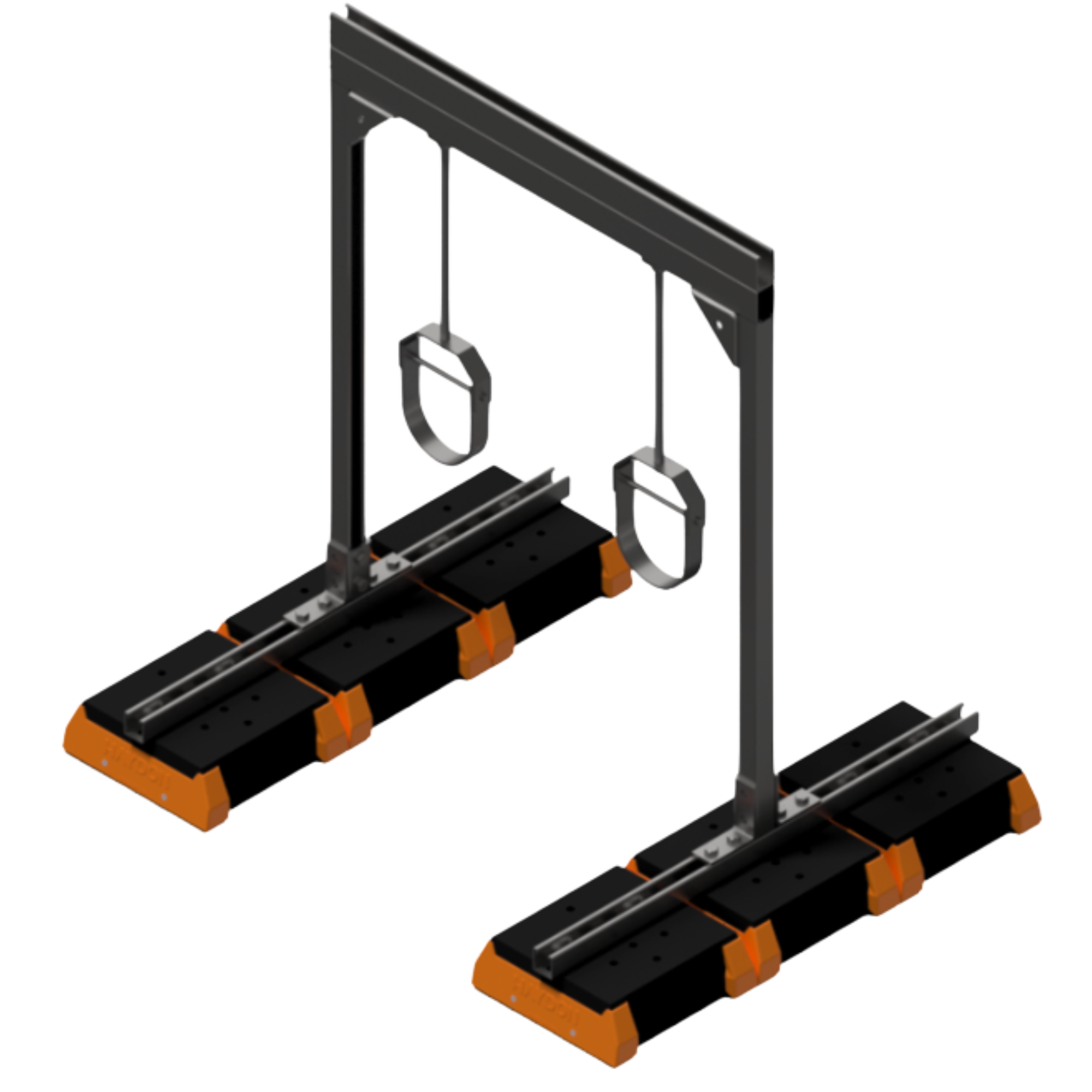

- Clevis hangers shown in images are for reference only and are not included.
H-Block Rooftop Supports Literature
Download
Product data sheet
Add to Favorites
Specifications
Material:
Base is 100% recycled rubber tires
Finish
Pre-galvanized ASTM 653 steel
Other Finishes Available
- Hot dipped galvanized ASTM A-123
- Zinc trivalen chromium ASTM B-633-85
- Powder coated spr-green ASTM B-117
- PVC coating 40ML thickness (available upon request only).
Technical Information
HB-MEGA-PH-36" Heavy Duty Pipe Hanger Support Series with H-122A PG Top Support
| Model No. | Height | Strut Width | Base Width | Base Length | No. of Bases | Weight (lbs) | Uniform Load Capacity (lbs) | Safety Factor |
|---|---|---|---|---|---|---|---|---|
| HB-MEGA-PH-36-36-H-122A-PG | 36" (914mm) | 36" (914mm) | 46 3/8" (1180mm) | 36" (914mm) | 6 | 134 | 4,385 | 2.0 |
| HB-MEGA-PH-36-48-H-122A-PG | 36" (914mm) | 48" (1219mm) | 58 3/8" (1485mm) | 36" (914mm) | 6 | 139 | 4,091 | 2.0 |
| HB-MEGA-PH-36-60-H-122A-PG | 36" (914mm) | 60" (1524mm) | 70 3/8" (1790mm) | 36" (914mm) | 6 | 144 | 3,276 | 2.0 |
| HB-MEGA-PH-36-72-H-122A-PG | 36" (914mm) | 72" (1829mm) | 82 3/8" (2095mm) | 36" (914mm) | 6 | 149 | 2,730 | 2.0 |
HB-MEGA-PH-36" Heavy Duty Pipe Hanger Support Series with H-112A PG Top Support
| Model No. | Height | Strut Width | Base Width | Base Length | No. of Bases | Weight (lbs) | Uniform Load Capacity (lbs) | Safety Factor |
|---|---|---|---|---|---|---|---|---|
| HB-MEGA-PH-36-36-H-112A-PG | 36" (914mm) | 36" (914mm) | 46 3/8" (1180mm) | 36" (914mm) | 6 | 138 | 5,788 | 2.0 |
| HB-MEGA-PH-36-48-H-112A-PG | 36" (914mm) | 48" (1219mm) | 58 3/8" (1485mm) | 36" (914mm) | 6 | 144 | 5,788 | 2.0 |
| HB-MEGA-PH-36-60-H-112A-PG | 36" (914mm) | 60" (1524mm) | 70 3/8" (1790mm) | 36" (914mm) | 6 | 150 | 5,418 | 2.0 |
| HB-MEGA-PH-36-72-H-112A-PG | 36" (914mm) | 72" (1829mm) | 82 3/8" (2095mm) | 36" (914mm) | 6 | 157 | 4,510 | 2.0 |
