H-164-OS3

Name: H-164-OS3
Brand: Haydon
Availability: InStock

Overview

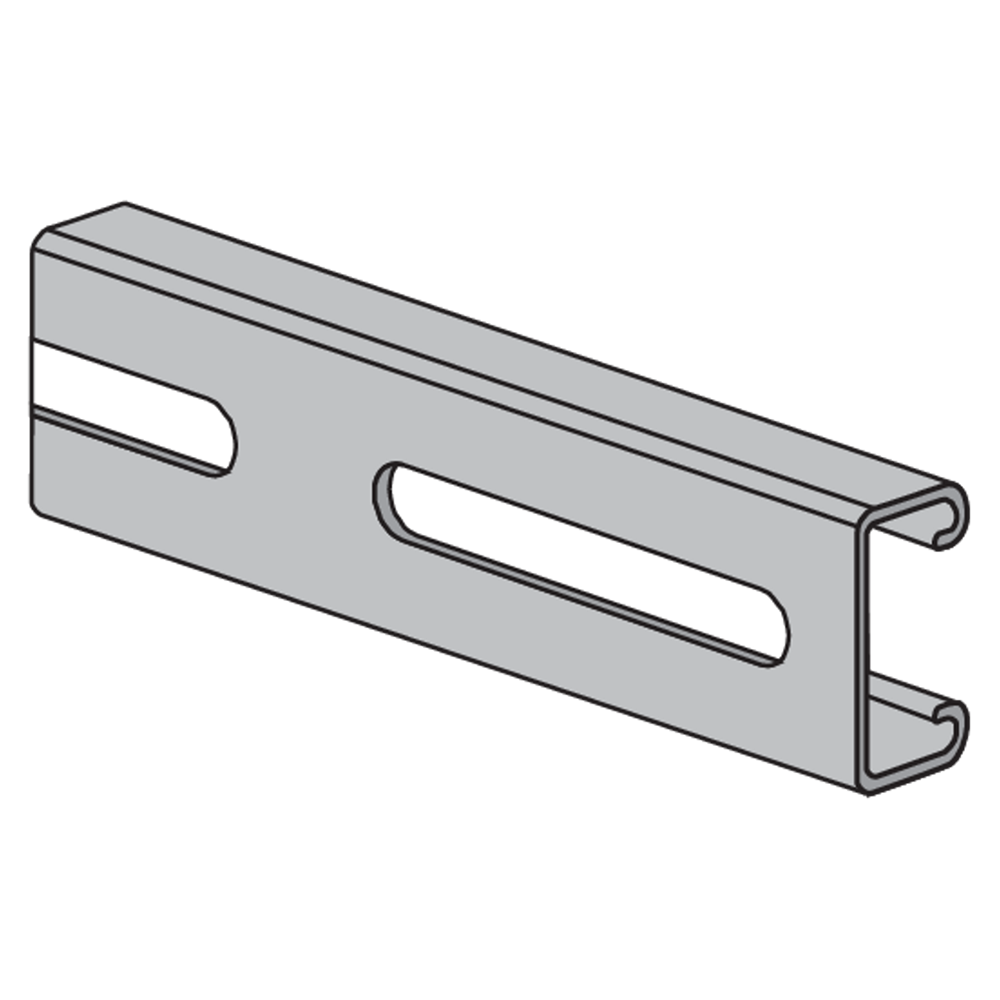

H-164 Channel With Long Slots

H-164-OS3 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

H-164-OS3
13/16" X 1-5/8"
14 Gauge Channel
Weight/100 ft. - 94 lbs.
H-164 is the most common channel used for supporting conduit and other electrical systems. Sometimes known as "shallow" strut, it is available "slotted" or with several other pre-punched hole and weld configurations.

Download

Product data sheet

Add to Favorites

Specifications

Material

H-STRUT® channels are manufactured from high quality, domestically sourced structural steel and roll formed into shape. These products comply with MFMA-4 standards, and beam and column load tables are calculated in accordance with the ANSI North American Specification for the Design of Cold-Formed Steel Structural Members, 2016 Edition.

(See the technical section for additional information.)

Aluminum (Type 6063-T6) - ASTM B221
Plain Steel - ASTM A1011 SS Grade 33
Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) - ASTM A240

Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent finishes. Other finishes are available upon request.

Hot-Dip Galvanized - ASTM A123
Zinc Trivalent Chromium (ZTC) - ASTM B633
Powder-Coated

Loading Data

Load capacities include a safety factor (to yield strength) of 1.68 for beam loads and 1.80 for column loads.
When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

Length Information

H-Strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈". Other lengths are available upon request.

Technical Information

H-164-OS3 strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
24	450	0.11	450	410	280	2.1	1,830	5,520	5,110	4,590	4,120
36	300	0.24	250	180	120	3.1	1,690	4,650	4,120	3,530	3,050
48	220	0.42	140	100	70	4.1	1,530	3,910	3,360	2,770	2,270
60	180	0.67	90	70	40	5.2	1,410	3,320	2,770	**	**
72	150	0.96	60	50	30	6.2	1,260	2,830	2,270	**	**
84	120	1.22	50	30	20	7.2	**	2,410	**	**	**
96	110	1.67	30	30	20	8.2	**	**	**	**	**
108	100	2.16	30	20	10	9.3	**	**	**	**	**
120	90	2.67	20	20	NR	10.3	**	**	**	**	**
144	70	3.59	20	NR	NR	12.4	**	**	**	**	**
168	60	4.88	NR	NR	NR	14.4	**	**	**	**	**
192	50	6.08	NR	NR	NR	16.5	**	**	**	**	**
216	50	8.65	NR	NR	NR	18.5	**	**	**	**	**
240	40	9.49	NR	NR	NR	20.6	**	**	**	**	**
