H-162-OSA

Name: H-162-OSA
Brand: Haydon

Overview

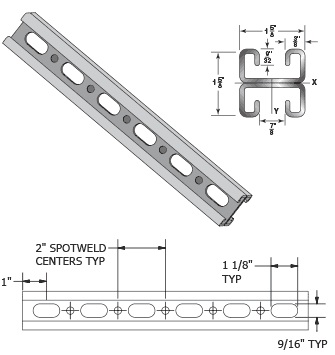

H-162 Back to Back Welded Channel With Slots

H-162-OSA strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

12 Gauge Back-to-Back Welded Channel
1⁵/₈" X 1⁵/₈"
Weight/100 ft. - 260 lbs.
H-162 is a light-duty welded channel capable of top and bottom attachment in a 1⁵/₈" tall product.
This product is commonly used for trapeze to support MEP systems.

Download

Product data sheet

Add to Favorites

Specifications

Material

H-STRUT® channels are produced from high quality, domestically sourced structural steel and roll formed into shape. These products comply with MFMA-4 standards. (See the technical section for additional information.)

Aluminum (Type 6063-T6) - ASTM B221
Plain Steel - ASTM A1011 SS Grade 33
Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) - ASTM A240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent finishes. Other finishes are available upon request.

Hot-Dip Galvanized - ASTM A123
Zinc Trivalent Chromium (ZTC) - ASTM B633
Powder-Coated

Loading Data

Load capacities include a safety factor of 1.68 for beam loads and 1.80 for column loads.
When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

Technical Information

H-162-OSA strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
24	560	0.11	560	520	340	2.7	2,370	7,580	7,170	6,680	6,250
36	370	0.24	310	230	150	4.1	2,250	6,740	6,250	5,670	5,110
48	280	0.43	170	130	90	5.5	2,150	6,050	5,480	4,740	4,010
60	220	0.65	110	80	60	6.9	2,000	5,430	4,740	**	**
72	180	0.92	80	60	40	8.2	1,840	4,830	4,010	**	**
84	160	1.30	60	40	30	9.6	**	4,230	**	**	**
96	140	1.70	40	30	20	11.0	**	**	**	**	**
108	120	2.08	30	30	20	12.4	**	**	**	**	**
120	110	2.61	30	20	NR	13.7	**	**	**	**	**
144	90	3.70	20	NR	NR	16.5	**	**	**	**	**
168	80	5.22	NR	NR	NR	19.2	**	**	**	**	**
192	70	6.81	NR	NR	NR	22.0	**	**	**	**	**
216	60	8.32	NR	NR	NR	24.7	**	**	**	**	**
240	50	9.51	NR	NR	NR	27.5	**	**	**	**	**
