H-152-OS

Name: H-152-OS
Brand: Haydon
Availability: InStock

Overview

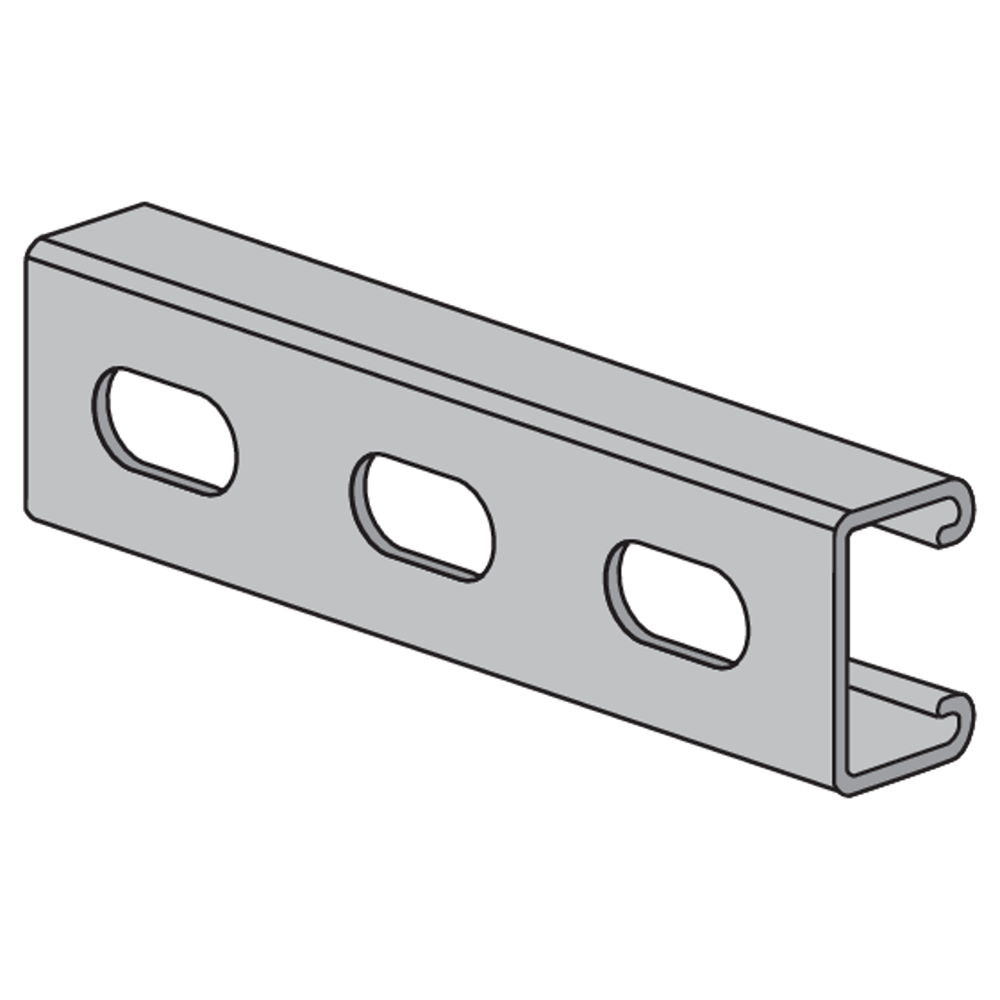

H-152 Channel With Open Slots

H-152-OS strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

12 Gauge Channel with Slots 9/16" X 1-1/8" on 2" Centers
1" X 1-5/8"
Weight/100 ft. - 144 lbs.

Download

Product data sheet

Add to Favorites

Specifications

Materials

H-152-OS strut channels are produced from prime structural metals covered by the following specifications:

Aluminum (Type 6063T6) - ASTM B-221
Plain Steel - ASTM A-1011-SS33
Pre-Galvanized Steel - ASTM A-653-SS33
Stainless Steel (Type 304 & 316L) - ASTM A-240
Other materials and specifications are available upon request.

Finishes

H-152-OS strut channels are available in the following finishes:

Hot Dipped Galvanized - ASTM A-123
Powder-Coated - ASTM B-117
Zinc Trivalent Chromium (ZTC) - ASTM B-633-85

Loading Data

When calculating load at the center of span, multiply load from the table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.
See Table 1 for additional technical data.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-152-OS strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
12	1,600	0.02	1,600	1,600	1,600	1.5	2,790	9,290	19,060	18,210	17,240
18	1,070	0.05	1,070	1,070	1,070	2.2	2,660	8,740	17,240	15,630	13,920
24	800	0.09	800	800	600	3	2,500	8,180	15,070	12,770	10,560
30	640	0.14	640	580	380	3.7	2,350	7,670	12,770	10,030	7,640
36	530	0.2	530	400	270	4.5	2,190	7,240	10,560	7,640	5,650
42	460	0.27	390	290	200	5.2	2,000	6,900	8,560	5,910	4,450
48	400	0.36	300	230	150	6	1,810	6,280	6,850	4,790	3,660
60	320	0.56	190	140	100	7.5	1,440	4,870	4,790	3,450	2,710
72	270	0.8	130	100	70	8.9	1,150	3,560	3,660	2,710	2,170
84	230	1.09	100	70	50	10.4	940	2,620	2,960	2,240	1,820
96	200	1.42	80	60	40	11.9		2,000	2,500	1,920	1,580
108	180	1.8	60	40	30	13.4		1,580	2,170	1,690	1,390
120	160	2.22	50	40	20	14.9			1,920	1,510
144	130	3.2	30	30	20	17.9			1,580
168	110	4.35	NR	NR	NR	20.9			1,340
180	110	5	NR	NR	NR	22.4
192	100	5.68	NR	NR	NR	23.8
216	90	7.19	NR	NR	NR	26.8
240	80	8.88	NR	NR	NR	29.8
