H-142-IN
Overview
H-142-IN1 3/8" x 1 5/8" x 12 gauge Concrete Insert
H-STRUT® Concrete Inserts are available with a pre-galvanized finish. Other materials and finishes may be available upon request. The standard length is 20' and this product can be field cut to shorter lengths. Load capacities for shorter lengths are provided in the table below.
Download
Product data sheet
Add to Favorites
Specifications
Material
H-Strut concrete inserts and accessories are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)
- Pre-Galvanized Steel – ASTM A653 SS Grade 33, G90
- Steel (Standard) – ASTM A1011 SS Grade 33
- Stainless Steel (Type 304 & 316/316L) – ASTM A240
- Hot Rolled Carbon Steel – ASTM A1011-SS33
- Other materials and specifications are available upon request.
Finishes
Other finishes for H-Strut concrete inserts are available upon request.
- Electrogalvanized – ASTM B633
- Hot-Dip Galvanized – ASTM A123
Technical Information

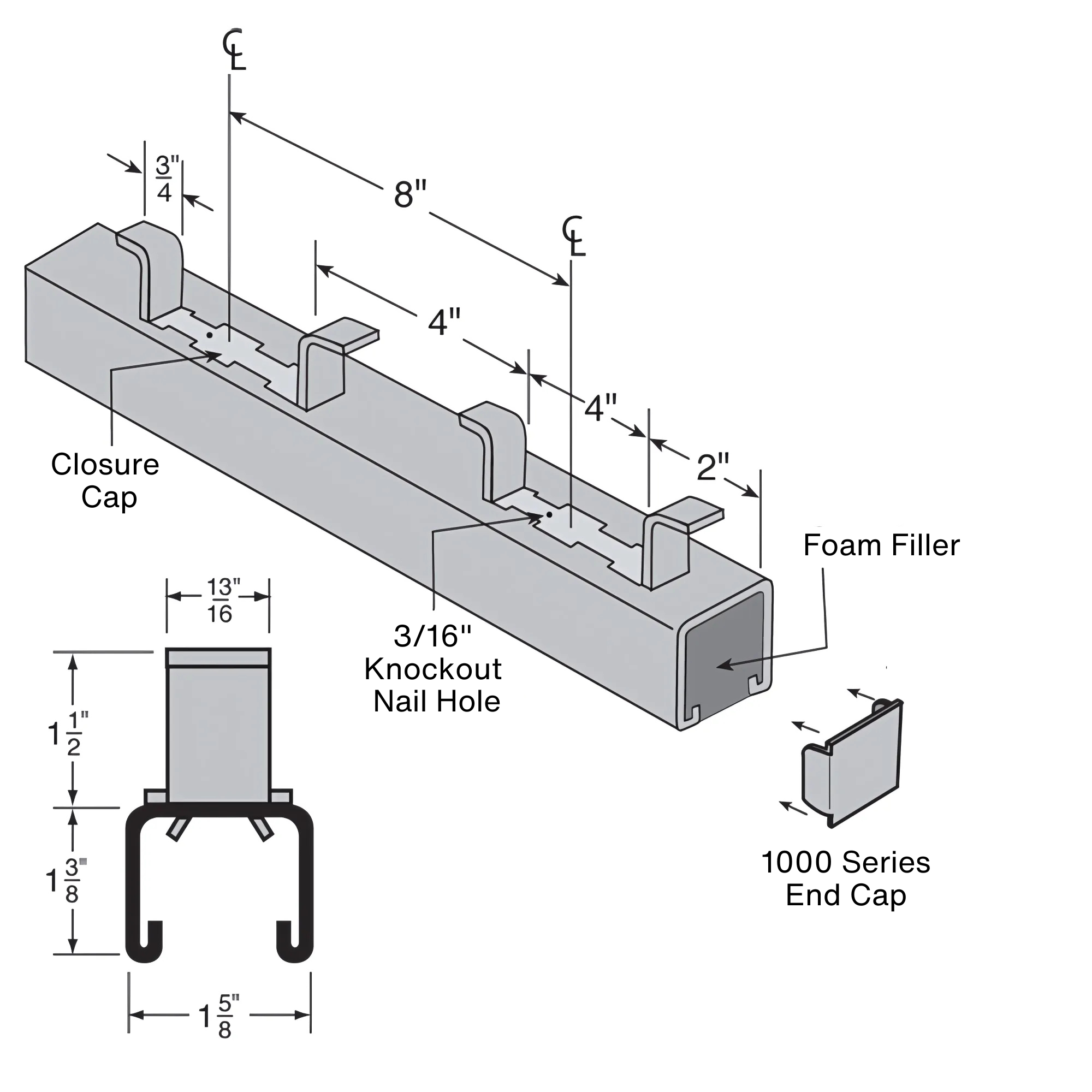

H-142-IN inserts are supplied with either the 1000 or 1001 series end cap and either a foam filler or plastic strip (C-900P) installed in the insert channel to prevent any concrete seepage. Inserts should be secured to forms at 16" intervals.
Other lengths are available upon request.
| Length(in) | Weight/100 pcs. | Max. Allowable Lbs. Load Per 12” Section |
|---|---|---|
| 3 | 87 | 500 |
| 4 | 103 | 800 |
| 6 | 134 | 1,000 |
| 8 | 206 | 1,200 |
| 12 | 188 | No more than 1,800 per 12" section |
| 18 | 282 | No more than 1,800 per 12" section |
| 24 | 376 | No more than 1,800 per 12" section |
| 30 | 470 | No more than 1,800 per 12" section |
| 36 | 564 | No more than 1,800 per 12" section |
| 48 | 752 | No more than 1,800 per 12" section |
| 60 | 940 | No more than 1,800 per 12" section |
| 72 | 1,128 | No more than 1,800 per 12" section |
| 84 | 1,316 | No more than 1,800 per 12" section |
| 96 | 1,504 | No more than 1,800 per 12" section |
| 108 | 1,692 | No more than 1,800 per 12" section |
| 120 | 1,880 | No more than 1,800 per 12" section |
| 240 | 3,760 | No more than 1,800 per 12" section |
