H-134-OS3

Name: H-134-OS3
Brand: Haydon
Availability: InStock

Overview

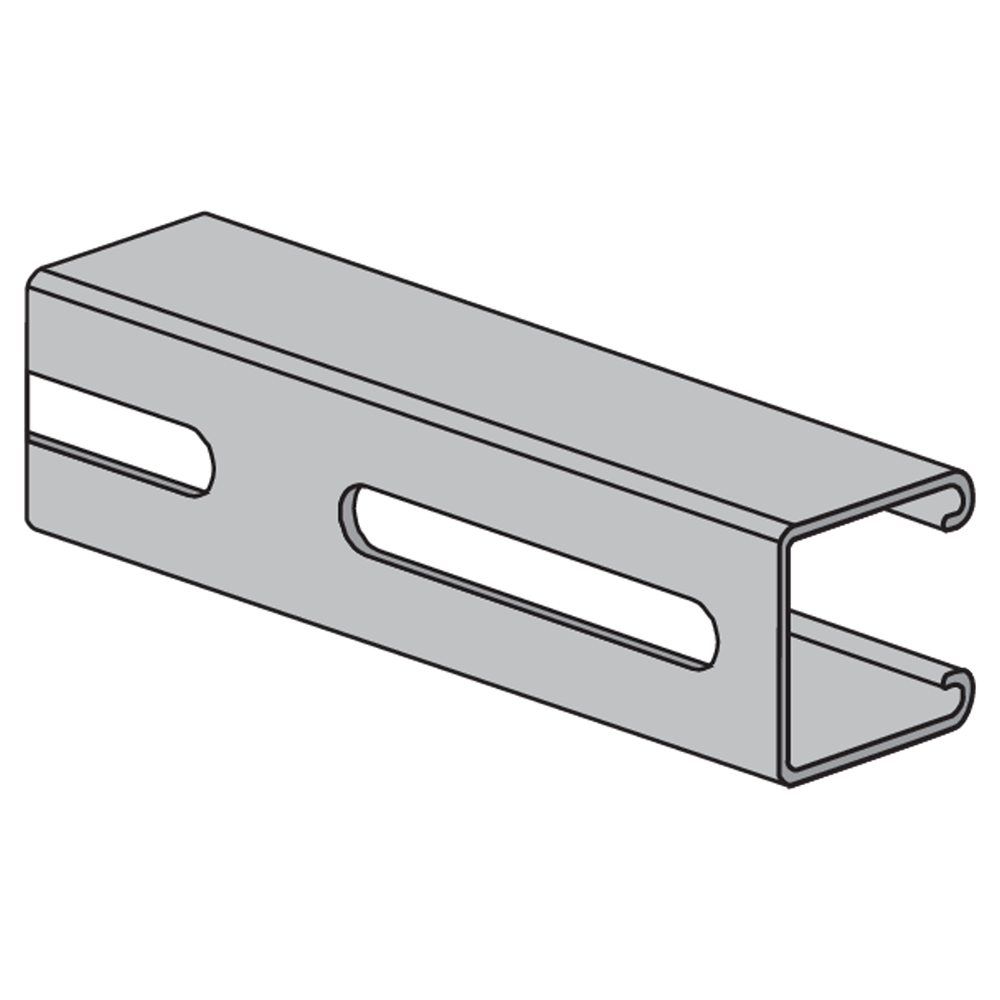

H-134 Channel With Long Slots

H-134-OS3 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

14 Gauge Channel
1-5/8" X 1-5/8"
Weight/100 ft. - 130 lbs.
H-134 is a medium-duty channel with a good strength-to-weight ratio. This product is commonly used for supporting electrical and light-duty mechanical systems.
As a 14 gauge alternative to the H-132 profile, it is available "slotted" or with several other pre-punched hole and weld configurations.

Download

Product data sheet

Add to Favorites

Specifications

Materials

H-STRUT® channels are manufactured from high quality, domestically sourced structural steel and roll formed into shape. These products comply with MFMA-4 standards, and beam and column load tables are calculated in accordance with the ANSI North American Specification for the Design of Cold-Formed Steel Structural Members, 2016 Edition.

Aluminum (Type 6063-T6) – ASTM B221
Plain Steel – ASTM A1011 SS Grade 33
Pre-Galvanized Steel – ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) – ASTM A240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent finishes. Other finishes are available upon request.

Hot-Dip Galvanized – ASTM A123
Zinc Trivalent Chromium (ZTC) – ASTM B633
Powder-Coated

Loading Data

Load capacities include a safety factor of 1.68 for beam loads and 1.80 for column loads.
When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

Technical Information

H-134-OS3 strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
24	1,350	0.06	1,350	1,350	1,350	2.9	2,790	7,930	7,260	6,320	5,410
36	900	0.13	900	900	690	4.4	2,460	6,440	5,410	4,180	3,190
48	670	0.23	670	580	390	5.8	1,990	4,970	3,820	2,730	2,120
60	540	0.35	500	370	250	7.3	1,620	3,730	2,730	2,010	1,600
72	450	0.51	350	260	170	8.7	1,350	2,830	2,120	1,600	1,290
84	380	0.68	250	190	130	10.2	1,160	2,280	1,740	1,330	1,080
96	330	0.89	190	150	100	11.6	1,020	1,910	1,480	1,140	920
108	300	1.15	150	120	80	13.1	920	1,650	1,290	1,000	**
120	270	1.42	120	90	60	14.5	830	1,450	1,140	**	**
144	220	2.00	90	60	40	17.4	690	1,170	920	**	**
168	190	2.74	60	50	30	20.3	**	980	**	**	**
192	160	3.44	50	40	NR	23.2	**	**	**	**	**
216	150	4.60	40	30	NR	26.1	**	**	**	**	**
240	130	5.46	30	NR	NR	29.0	**	**	**	**	**
