H-134-OS

Name: H-134-OS
Brand: Haydon
Availability: InStock

Overview

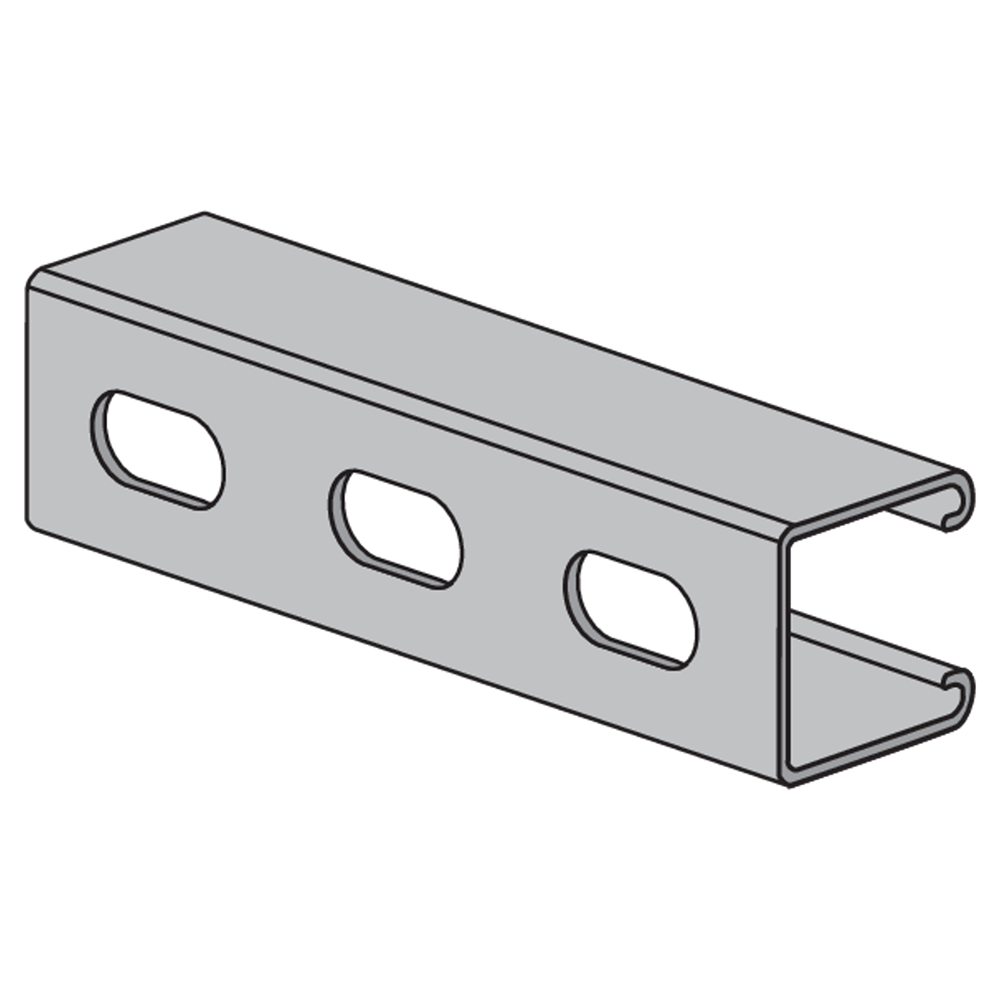

H-134 Channel With Open Slots

H-134-OS 9" strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

14 Gauge Channel
1-5/8" X 1-5/8"
Weight/100 ft. - 140 lbs.
H-STRUT® channels are available in pre-galvanized, plain, powder-coated, zinc trivalent, aluminum, stainless steel 304, and 316L.
Standard lengths are 10' and 20'. Other materials, finishes, and lengths are available upon request.

Download

Product data sheet

Add to Favorites

Specifications

Materials

H-Strut channels are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)

Aluminum (Type 6063T6) - ASTM B-221
Plain Steel - ASTM A-1011-SS33
Pre-Galvanized Steel - ASTM A-653-SS33
Stainless Steel (Type 304 & 316L) - ASTM A-240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated, and zinc trivalent finishes. Other finishes are available upon request.

Hot Dipped Galvanized - ASTM A-123
Powder-Coated - ASTM B-117
Zinc Trivalent Chromium (ZTC) - ASTM B-633-85

Loading Data

When calculating load at the center of span, multiply load from the table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

Technical Information

H-134-OS strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
12	2,790	0.01	2,790	2,790	2,790	1.5	3,050	9,230	9,000	8,640	8,230
18	1,860	0.03	1,860	1,860	1,860	2.2	2,930	8,690	8,230	7,550	6,830
24	1,400	0.06	1,400	1,400	1,400	2.9	2,770	8,010	7,310	6,350	5,420
30	1,120	0.09	1,120	1,120	1,040	3.6	2,590	7,250	6,350	5,200	4,190
36	930	0.13	930	930	720	4.4	2,390	6,470	5,420	4,190	3,210
42	800	0.18	800	800	530	5.1	2,180	5,700	4,570	3,350	2,580
48	700	0.23	700	610	410	5.8	1,980	4,990	3,830	2,760	2,160
60	560	0.36	520	390	260	7.3	1,620	3,740	2,760	2,050	1,640
72	470	0.51	360	270	180	8.7	1,370	2,860	2,160	1,640	1,330
84	400	0.7	270	200	130	10.2	1,190	2,320	1,780	1,370	1,120
96	350	0.91	200	150	100	11.6	1,050	1,950	1,520	1,180	960
108	310	1.16	160	120	80	13.1	940	1,690	1,330	1,030	None
120	280	1.43	130	100	70	14.5	850	1,500	1,180	None	None
144	230	2.06	90	70	50	17.4	710	1,220	960	None	None
168	200	2.8	70	50	30	20.3	None	1,020	None	None	None
180	190	3.21	60	40	30	21.8	None	940	None	None	None
192	170	3.66	50	40	30	23.2	None	None	None	None	None
216	160	4.63	40	30	NR	26.1	None	None	None	None	None
240	140	5.72	30	NR	NR	29	None	None	None	None	None
