H-134

Name: H-134
Brand: Haydon

Overview

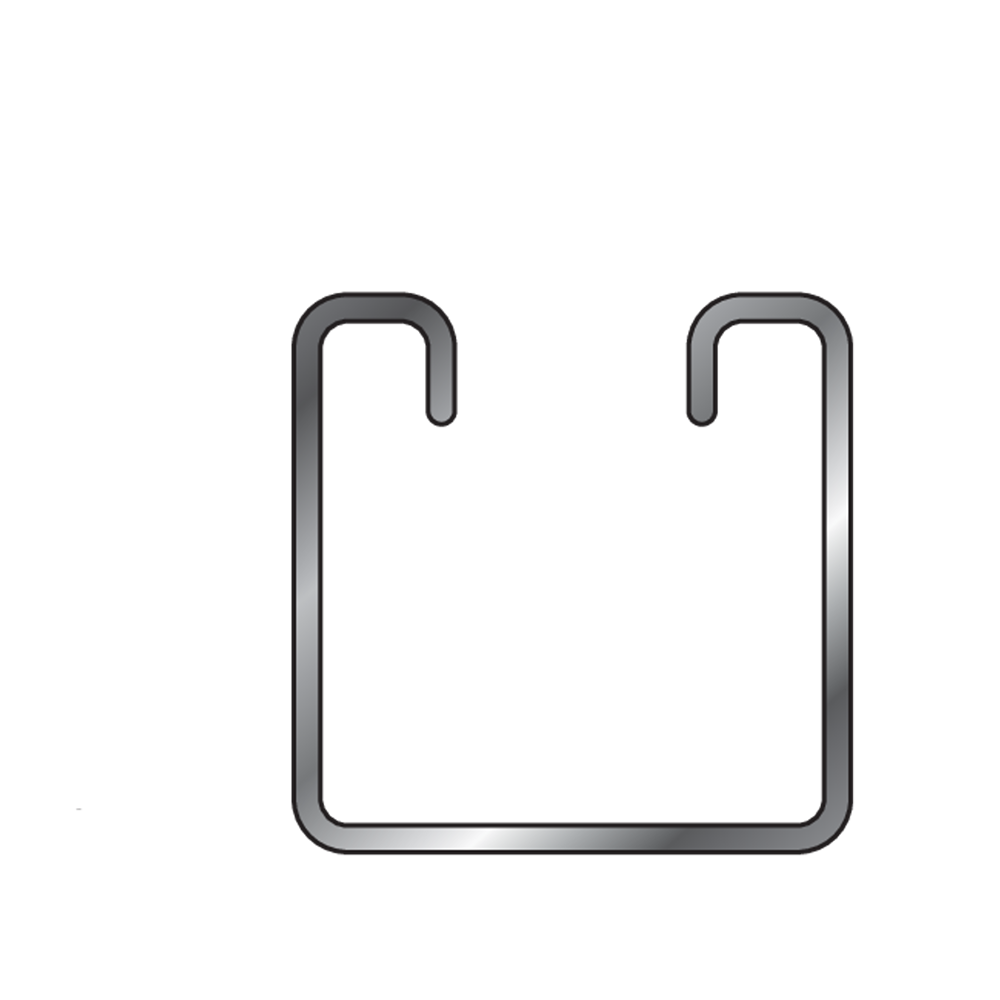

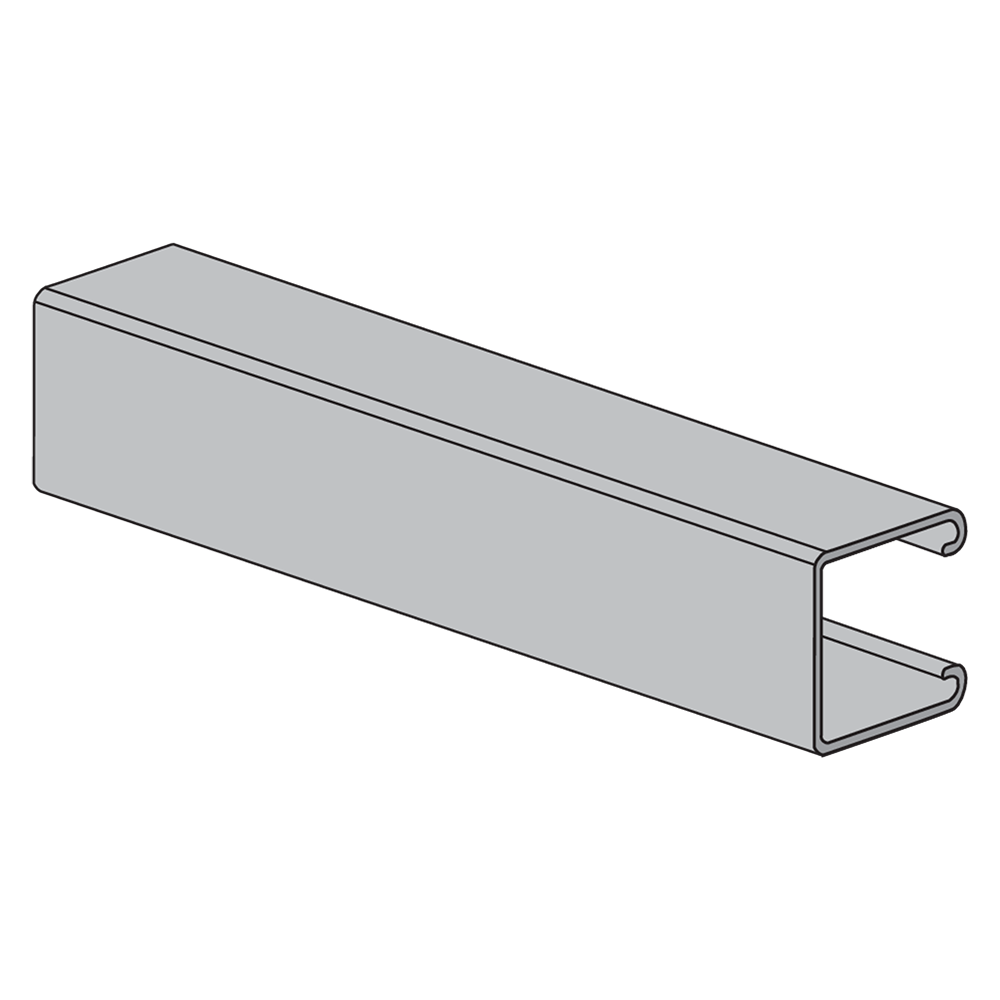

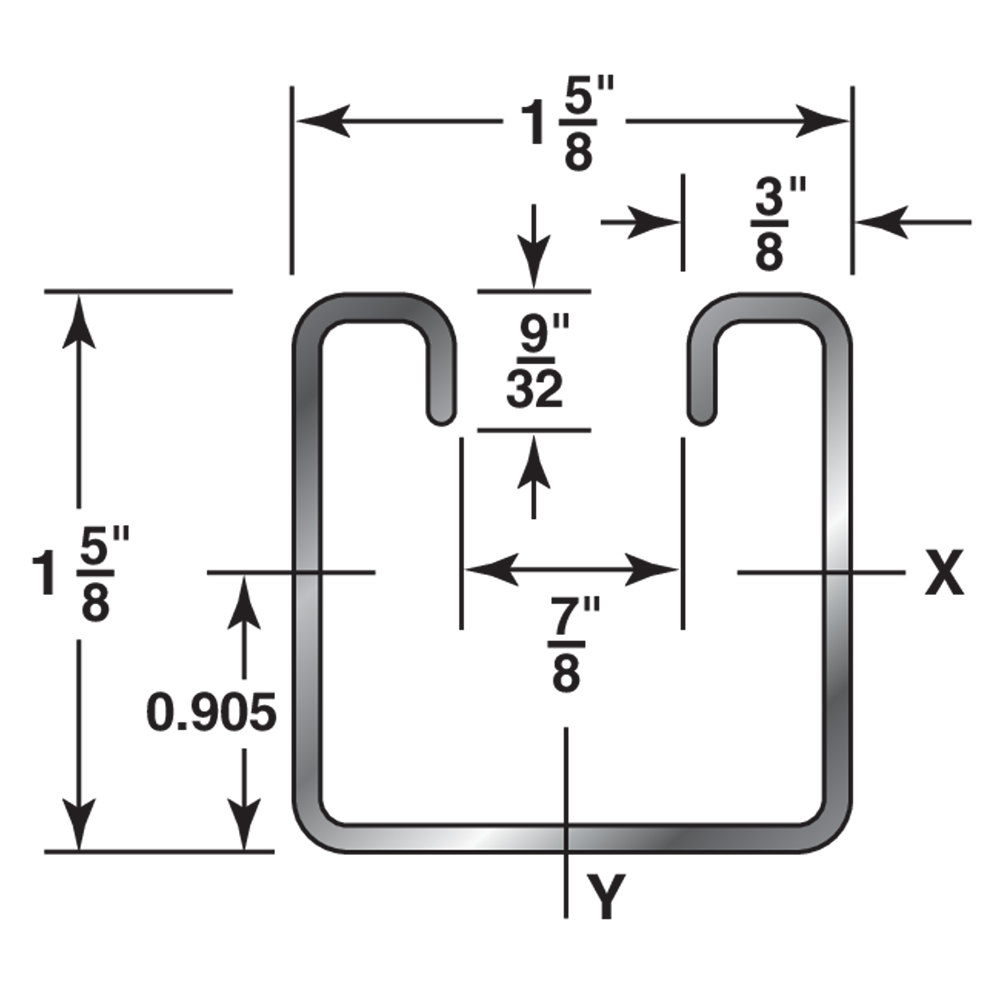

H-134 Channel

H-134 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

H-134
1⁵/₈" X 1⁵/₈"
14 Gauge Channel
Weight/100 ft. - 145 lbs.
H-134 is a medium-duty channel with a good strength-to-weight ratio. This product is commonly used for supporting electrical and light-duty mechanical systems. As a 14 gauge alternative to the H-132 profile, it is available "slotted" or with several other prepunched hole and weld configurations.

Download

Product data sheet

Add to Favorites

Specifications

Material

H-Strut channels are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)

Aluminum (Type 6063-T6) - ASTM B221
Plain Steel - ASTM A1011 SS Grade 33
Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) - ASTM A240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent. Other finishes are available upon request.

Hot-Dip Galvanized - ASTM A123
Zinc Trivalent Chromium (ZTC) - ASTM B633
Powder-Coated

Loading Data

Load capacities in this section include a safety factor (to the yield strength) of 1.68 for beam loads and 1.80 for column loads.
When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-134 strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
24	1,350	0.06	1,350	1,350	1,350	2.9	2,790	7,930	7,260	6,320	5,410
36	900	0.13	900	900	690	4.4	2,460	6,440	5,410	4,180	3,190
48	670	0.23	670	580	390	5.8	1,990	4,970	3,820	2,730	2,120
60	540	0.35	500	370	250	7.3	1,620	3,730	2,730	2,010	1,600
72	450	0.51	350	260	170	8.7	1,350	2,830	2,120	1,600	1,290
84	380	0.68	250	190	130	10.2	1,160	2,280	1,740	1,330	1,080
96	330	0.89	190	150	100	11.6	1,020	1,910	1,480	1,140	920
108	300	1.15	150	120	80	13.1	920	1,650	1,290	1,000	**
120	270	1.42	120	90	60	14.5	830	1,450	1,140	**	**
144	220	2.00	90	60	40	17.4	690	1,170	920	**	**
168	190	2.74	60	50	30	20.3	**	980	**	**	**
192	160	3.44	50	40	NR	23.2	**	**	**	**	**
216	150	4.60	40	30	NR	26.1	**	**	**	**	**
240	130	5.46	30	NR	NR	29.0	**	**	**	**	**
