H-132-OS2.5

Overview

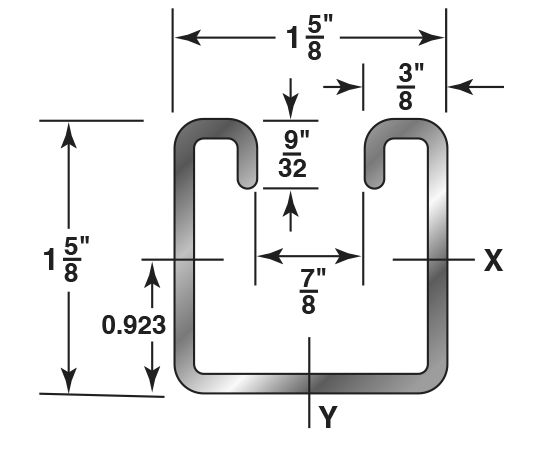

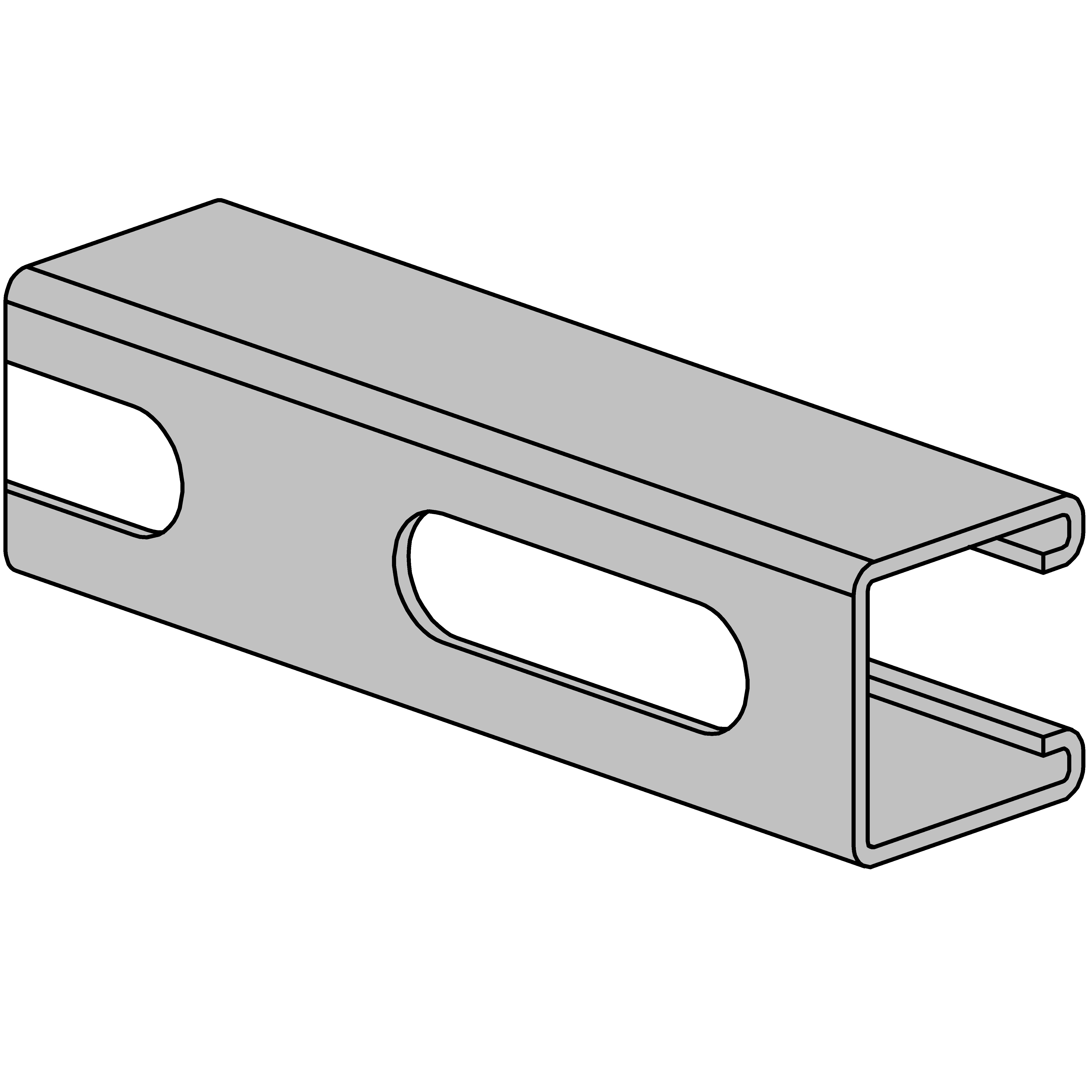

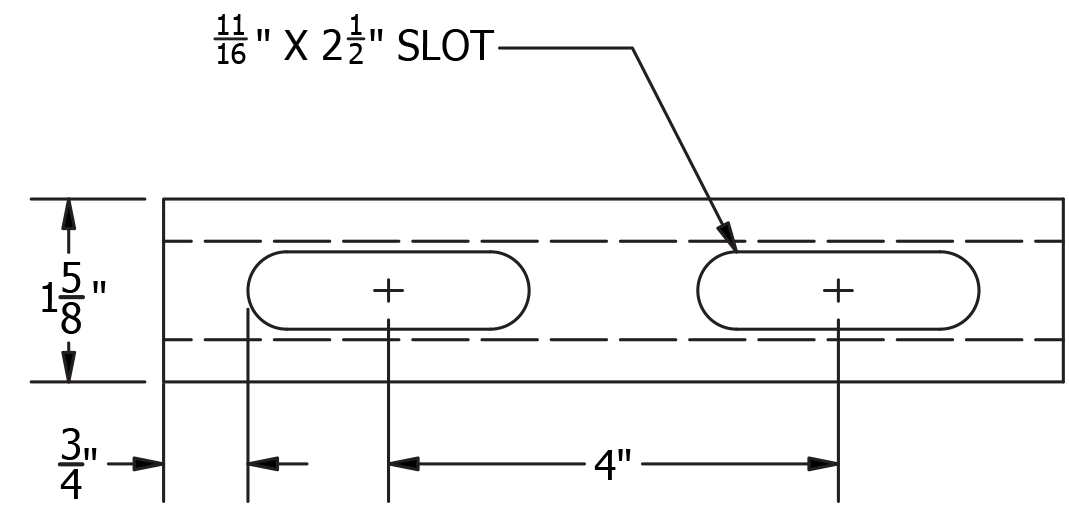

H-132 strut channels are 1⁵/₈" X 1⁵/₈" 12 gauge channels with a weight of 180 lbs per 100 ft. H-132 strut is the most common, and typically the standard, 12 gauge channel specified for numerous applications. Sometimes known as "deep" strut, it is commonly used for MEP supports, trapeze, seismic bracing, and many other applications. It is available "slotted" or with several other pre-punched hole and weld configurations.

12 Gauge Channel
1-5/8" X 1-5/8"
Weight/100 ft. - 180 lbs.

Download

Product data sheet

Add to Favorites

Specifications

General

H-STRUT® channels are manufactured from high quality, domestically sourced structural steel and roll formed into shape. These products comply with MFMA-4 standards, and beam and column load tables are calculated in accordance with the ANSI North American Specification for the Design of Cold-Formed Steel Structural Members, 2016 Edition.

Length Information

H-Strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄&sub8;". Other lengths are available upon request.

Loading Data

Load capacities include a safety factor of 1.68 for beam loads and 1.80 for column loads.
For center span: multiply load by 0.5 and deflection by 0.8.
For aluminum: multiply loads by 33%.

Material

H-Strut channels are produced from prime structural metals covered by the following specifications.

Aluminum (Type 6063-T6) - ASTM B221
Plain Steel - ASTM A1011 SS Grade 33
Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) - ASTM A240
Other materials available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent finishes.

Hot-Dip Galvanized - ASTM A123
Zinc Trivalent Chromium (ZTC) - ASTM B633
Pre-Galvanized

Technical Information

Span or Unbraced Height	Static Beam Loading (X-X Axis)						Max. Allowable Load at Slot Face	Column Loading Data				Unbraced Length Factor
	Max Allowed Uniform Load	Deflection at Uniform Load	Uniform Load at Deflection			Weight of Channel		Max. Column Load Applied at C.G.
	Max Allowed Uniform Load	Deflection at Uniform Load	Span/180	Span/240	Span/360	Weight of Channel		k=.65	k=.80	k=1.0	k=1.2
24	1,750	0.06	1,750	1,750	1,750	3.9	3,670	10,790	9,920	8,770	7,700	1.00
36	1,170	0.13	1,170	1,170	910	5.8	3,320	8,910	7,700	6,330	5,220	1.00
48	870	0.22	870	770	510	7.8	2,900	7,210	5,930	4,600	3,720	0.98
60	700	0.35	650	490	330	9.7	2,510	5,840	4,600	3,560	2,900	0.95
72	580	0.50	450	340	230	11.6	2,200	4,740	3,720	2,900	2,360	0.93
84	500	0.69	330	250	170	13.6	1,970	3,960	3,130	2,430	1,950	0.91
96	430	0.88	260	190	130	15.5	1,760	3,400	2,700	2,080	1,650	0.89
108	390	1.14	200	150	100	17.5	1,610	2,980	2,360	1,790	0.87
120	350	1.40	160	120	80	19.4	1,470	2,650	2,080	0.86
144	290	2.01	110	90	60	23.3	1,230	2,140	1,650	0.83
168	250	2.75	80	60	40	27.2	1,790	0.80
192	210	3.45	60	50	NR	31.0	0.75
216	190	4.55	50	40	NR	34.9	0.68
240	170	5.46	40	NR	38.8	0.62

NOTES

NR indicates not recommened | * indicates uniform load limited by weld shear | ** indicates KL/r > 200
