H-132-OS

Name: H-132-OS
Brand: Haydon
Availability: InStock

Overview

H-132 Channel With Open Slots

H-132-OS strut channels are manufactured in a 1⁵/₈" x 1⁵/₈" 12-gauge configuration, with a weight of 189 lbs. per 100 ft. H-STRUT® channels are available in pre-galvanized, plain, powder-coated, zinc trivalent, aluminum, stainless steel 304, and 316L. Standard lengths are 10' and 20'. Other materials, finishes, and lengths are available upon request.

1⁵/₈" X 1⁵/₈"
12 Gauge Channel
Weight/100 ft. - 189 lbs.

Download

Product data sheet

Add to Favorites

Specifications

Materials

H-Strut channels are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)

Aluminum (Type 6063T6) – ASTM B-221
Plain Steel – ASTM A-1011-SS33
Pre-Galvanized Steel – ASTM A-653-SS33
Stainless Steel (Type 304 & 316L) – ASTM A-240
Other materials and specifications available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent finishes. Other finishes are available upon request.

Hot Dipped Galvanized – ASTM A-123
Powder-Coated – ASTM B-117
Zinc Trivalent Chromium (ZTC) – ASTM B-633-85

Loading Data

When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

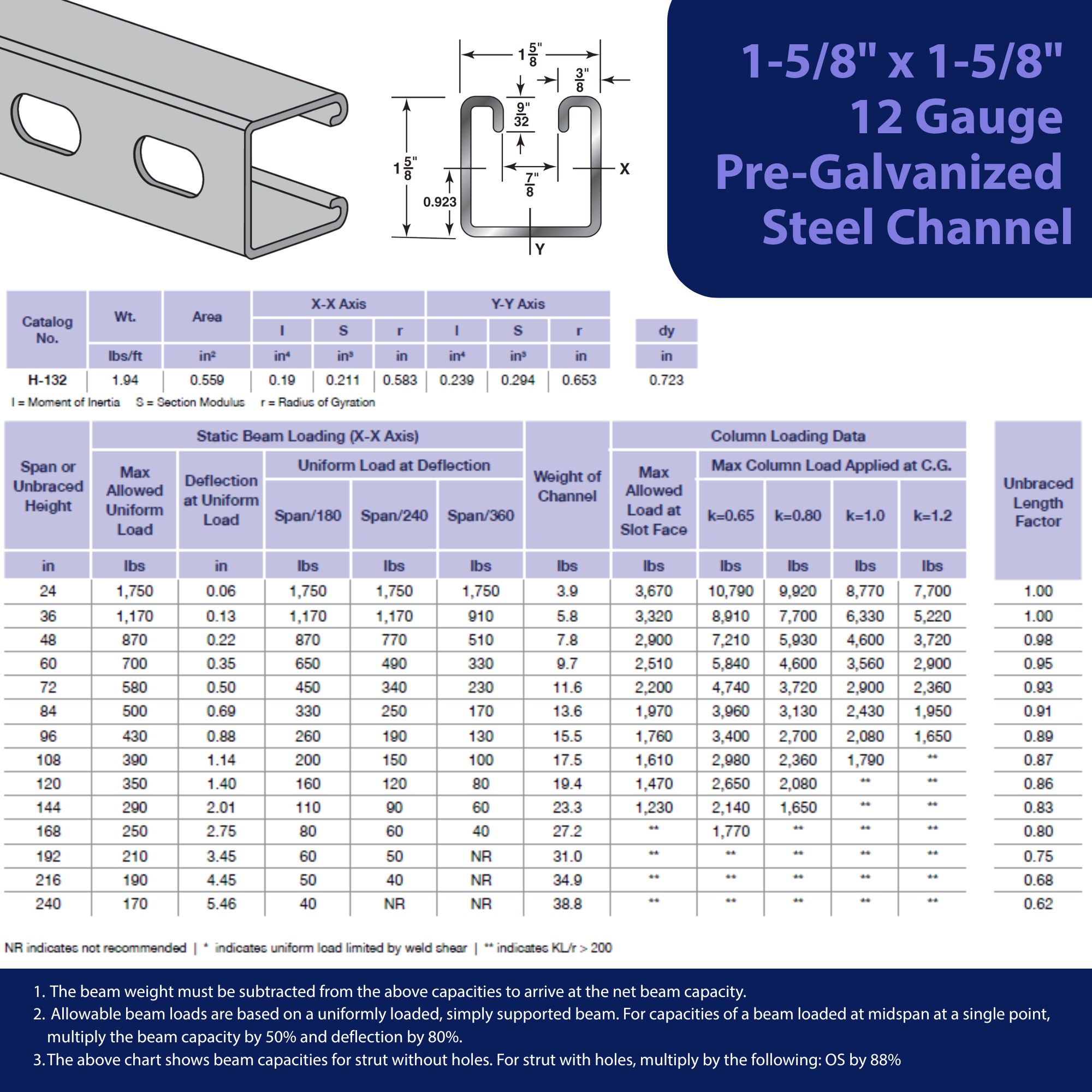

Technical Information

H-132-OS strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
12	3,480	0.01	3,480	3,480	3,480	1.9	3,850	12,240	11,940	11,480	10,960
18	2,320	0.03	2,320	2,320	2,320	2.9	3,710	11,540	10,960	10,130	9,290
24	1,740	0.06	1,740	1,740	1,740	3.9	3,530	10,690	9,850	8,740	7,710
30	1,390	0.09	1,390	1,390	1,310	4.9	3,330	9,780	8,740	7,470	6,380
36	1,160	0.13	1,160	1,160	910	5.8	3,120	8,880	7,710	6,380	5,310
42	990	0.17	990	990	670	6.8	2,910	8,020	6,800	5,470	4,430
48	870	0.23	870	770	510	7.8	2,710	7,240	6,000	4,690	3,810
60	700	0.35	660	490	330	9.7	2,340	5,910	4,690	3,630	2,960
72	580	0.51	460	340	230	11.6	2,040	4,840	3,810	2,960	2,400
84	500	0.69	340	250	170	13.6	1,800	4,040	3,200	2,480	1,980
96	430	0.90	260	190	130	15.5	1,600	3,480	2,750	2,110	1,670
108	390	1.14	200	150	100	17.5	1,440	3,050	2,400	1,820	**
120	350	1.41	160	120	80	19.4	1,290	2,700	2,110	**	**
144	290	2.03	110	90	60	23.3	1,060	2,180	1,670	**	**
168	250	2.77	80	60	40	27.2	**	1,790	**	**	**
180	230	3.18	70	50	40	29.1	**	**	**	**	**
192	220	3.61	60	50	NR	31.0	**	**	**	**	**
216	190	4.57	50	40	NR	34.9	**	**	**	**	**
240	170	5.65	40	NR	NR	38.8	**	**	**	**	**
