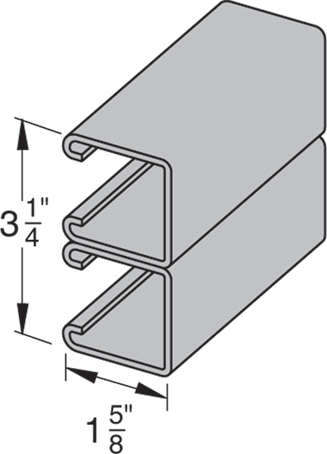

H-132 Side to Side Welded Channel - 2 PiecesH-132-B
3 ¹/₄" X 1⁵/₈"
12 Gauge Channel
Weight/100 ft. - 388 lbs.
H-132 strut is the most common, and typically the standard, 12 gauge channel specified for numerous applications. Sometimes known as "deep" strut, it is commonly used for MEP supports, trapeze, seismic bracing, and many other applications. It is available "slotted" or with several other pre-punched hole and weld configurations.
Download
Product data sheet
Add to Favorites
Specifications
Material
H-Strut channels are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)
- Aluminum (Type 6063-T6) - ASTM B221
- Plain Steel - ASTM A1011 SS Grade 33
- Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
- Stainless Steel (Type 304 & 316L) - ASTM A240
- Other materials and specifications are available upon request.
Finishes
H-Strut is available in powder-coated and zinc trivalent. Other finishes are available upon request.
- Hot-Dip Galvanized - ASTM A123
- Zinc Trivalent Chromium (ZTC) - ASTM B633
- Powder-Coated
Length Information
H-Strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈". Other lengths are available upon request.
Loading Data
- Load capacities in this section include a safety factor (to the yield strength) of 1.68 for beam loads and 1.80 for column loads.
- When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
- When calculating beam and column loads for aluminum, multiply by 33%.
