Overview

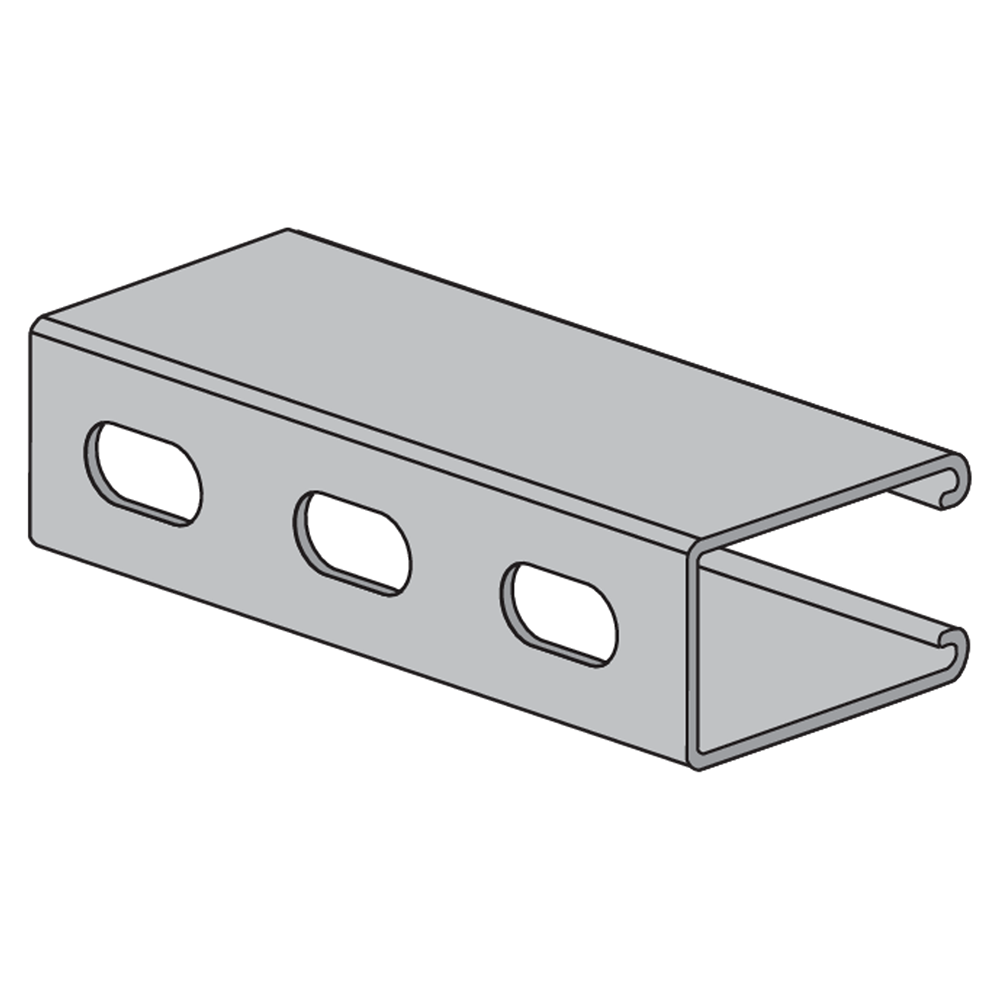

H-122 Channel With Open Slots

H-122-OS strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

2-7/16" X 1-5/8"
12 Gauge Channel
Weight/100 ft. - 249 lbs.
H-122 is a heavy-duty channel capable of carrying heavy loads. This product is commonly used for heavy applications and supporting over long spans. It is available "slotted" or with several other pre-punched hole and weld configurations.

Download

Product data sheet

Add to Favorites

Specifications

Material

H-Strut channels are produced from prime structural metals covered by the following specifications. (See the technical section for additional information.)

Aluminum (Type 6063-T6) - ASTM B221
Plain Steel - ASTM A1011 SS Grade 33
Pre-Galvanized Steel - ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) - ASTM A240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent. Other finishes are available upon request.

Hot-Dip Galvanized - ASTM A123
Zinc Trivalent Chromium (ZTC) - ASTM B633
Powder-Coated

Loading Data

Load capacities in this section include a safety factor (to the yield strength) of 1.68 for beam loads and 1.80 for column loads.
When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-122-OS strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈".

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
24	3350	0.04	3350	3350	3350	5.1	4740	13860	12580	10820	9150
36	2230	0.09	2230	2230	2230	7.6	4110	11040	9150	6960	5290
48	1670	0.15	1670	1670	1430	10.2	3300	8370	6310	4550	3570
60	1340	0.24	1340	1340	910	12.7	2670	6170	4550	3390	2720
72	1110	0.34	1110	950	640	15.2	2250	4710	3570	2720	2210
84	950	0.47	930	700	470	17.8	1940	3820	2950	2280	1870
96	830	0.61	710	540	360	20.3	1710	3220	2520	1970	1620
108	740	0.77	560	420	280	22.9	1550	2800	2210	1740	1420
120	670	0.96	460	340	230	25.4	1410	2480	1970	1550	None
144	550	1.36	320	240	160	30.5	1190	2030	1620	None	None
168	470	1.85	230	170	120	35.6	1020	1720	1360	None	None
192	410	2.41	180	130	90	40.6	None	1480	None	None	None
216	370	3.09	140	110	70	45.7	None	None	None	None	None
240	330	3.78	110	90	60	50.8	None	None	None	None	None
