H-122

Name: H-122
Brand: Haydon
Availability: InStock

Overview

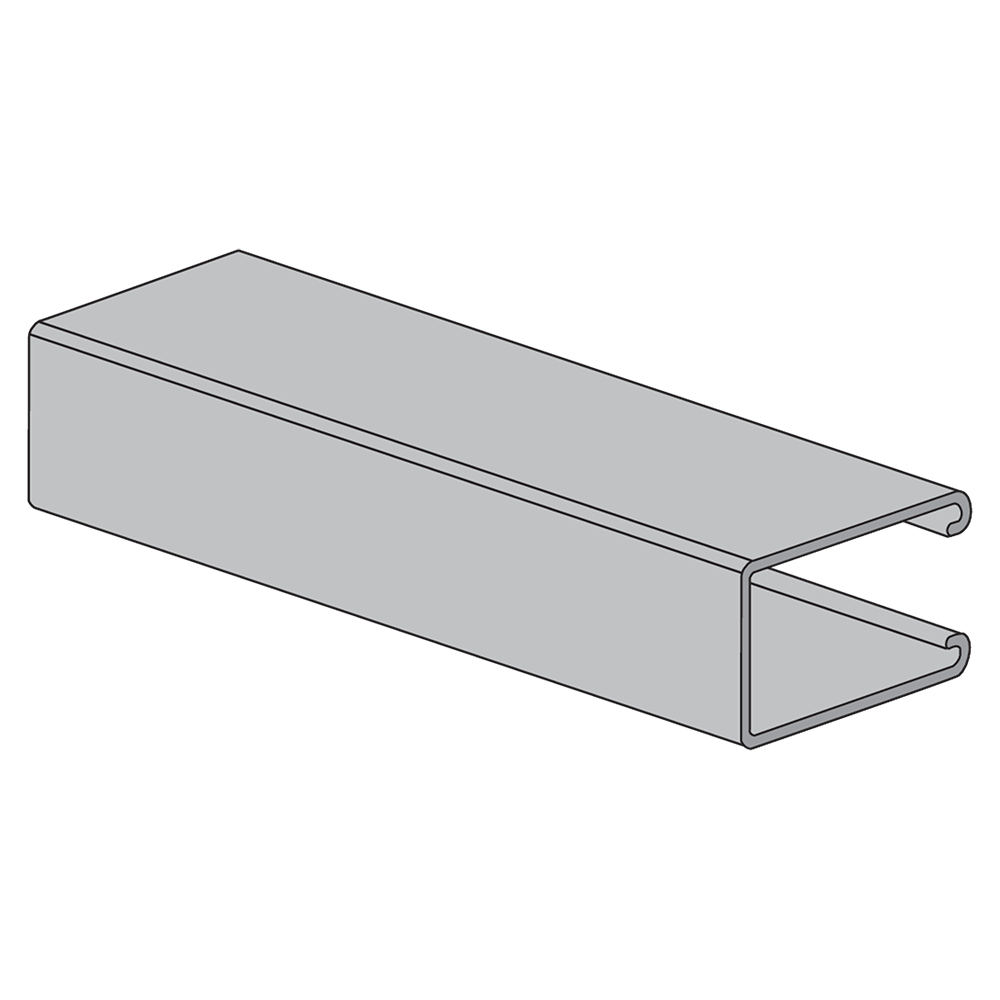

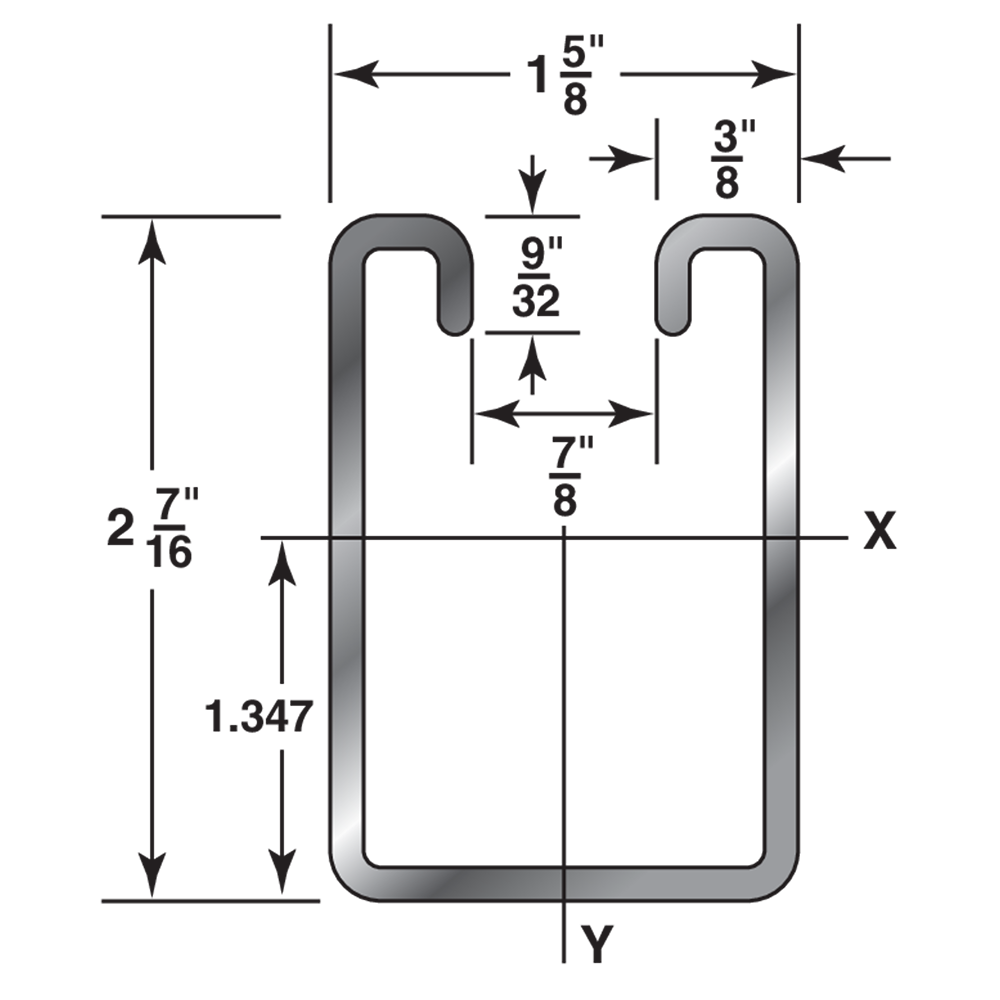

H-122 Channel

H-122 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015" on outside dimensions.

12-Gauge Channel
2-7/16" x 1-5/8"
Weight/100 ft. - 254 lbs.

Download

Product data sheet

Add to Favorites

Specifications

Materials

H-Strut channels are produced from prime structural metals covered by the following specifications:

Aluminum (Type 6063T6) - ASTM B-221
Plain Steel - ASTM A-1011-SS33
Pre-Galvanized Steel - ASTM A-653-SS33
Stainless Steel (Type 304 & 316L) - ASTM A-240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent. Other finishes are available upon request.

Hot Dipped Galvanized - ASTM A-123
Powder-Coated - ASTM B-117
Zinc Trivalent Chromium (ZTC) - ASTM B-633-85

Loading Data

When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.
See Table 1 for additional technical data.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-Strut channels are produced in standard 10' and 20' lengths with a tolerance of ±¹⁄₈". Other lengths are available upon request.

Other lengths are available upon request.

Span or Unbraced Height(in)	Static Beam Load (X-X Axis)						Max. Allowable Load at Slot Face(lbs)	Column Loading Data
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Uniform Load at Deflection					Max. Column Load Applied at C.G.
	Max Allowable Uniform Load(lbs)	Deflection at Uniform Load(in)	Span/180 Deflection(lbs)	Span/240 Deflection(lbs)	Span/360 Deflection(lbs)	Weight of Channel(lbs)		k=.65(lbs)	k=.80(lbs)	k=1.0(lbs)	k=1.2(lbs)
12	6640.0	0.01	6640	6640	6640	2.5	5050	15940	15530	14880	14140
18	4430.0	0.02	4430	4430	4430	3.8	4870	14970	14140	12920	11640
24	3320.0	0.04	3320	3320	3320	5.1	4630	13750	12500	10790	9160
30	2660.0	0.06	2660	2660	2660	6.4	4350	12390	10790	8770	7020
36	2210.0	0.09	2210	2210	2210	7.6	4030	11000	9160	7020	5360
42	1900.0	0.12	1900	1900	1870	8.9	3700	9650	7680	5590	4320
48	1660.0	0.15	1660	1660	1430	10.2	3350	8400	6390	4620	3630
60	1330.0	0.24	1330	1330	920	12.7	2770	6240	4620	3450	2770
72	1110.0	0.35	1110	960	640	15.2	2360	4790	3630	2770	2260
84	950.0	0.47	940	700	470	17.8	2070	3890	3010	2330	1910
96	830.0	0.62	720	540	360	20.3	1850	3290	2580	2020	1650
108	740.0	0.78	570	420	280	22.9	1670	2860	2260	1770	1440
120	660.0	0.97	460	340	230	25.4	1520	2530	2020	1580
144	550.0	1.39	320	240	160	30.5	1290	2070	1650
168	470.0	1.89	230	180	120	35.6	1110	1750	1380
180	440.0	2.17	200	150	100	38.1		1620
192	420.0	2.47	180	130	90	40.6		1510
216	370.0	3.13	140	110	70	45.7
240	330.0	3.86	110	90	60	50.8
