H-112-OSA

Name: H-112-OSA
Brand: Haydon

Overview

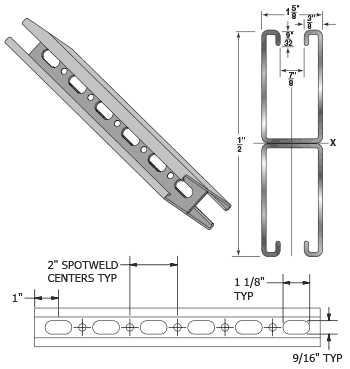

H-112 Back to Back Welded Channel With Slots

H-112-OSA strut channels are Haydon’s strongest back-to-back profile, formed through a series of precision dies or rolls that progressively cold work the steel into the desired shape. This process ensures a cross-section with uniform dimensions and a tolerance of ±0.015" on outside dimensions.

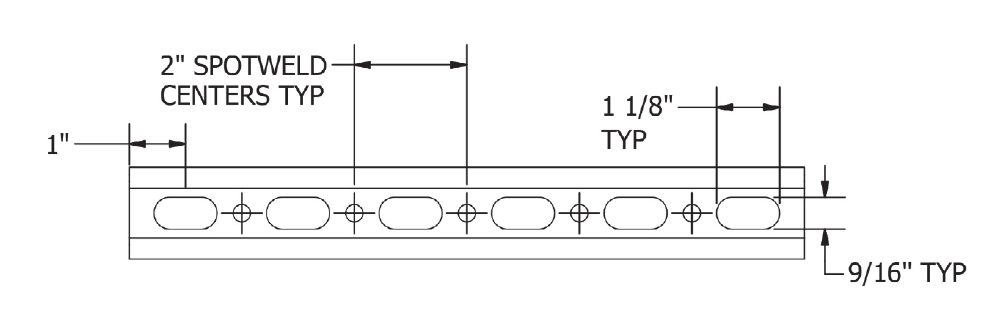

12 Gauge Back-to-Back Channel – Slotted 9/16" X 1-1/8" on 2" Centers (other hole and weld configurations available)

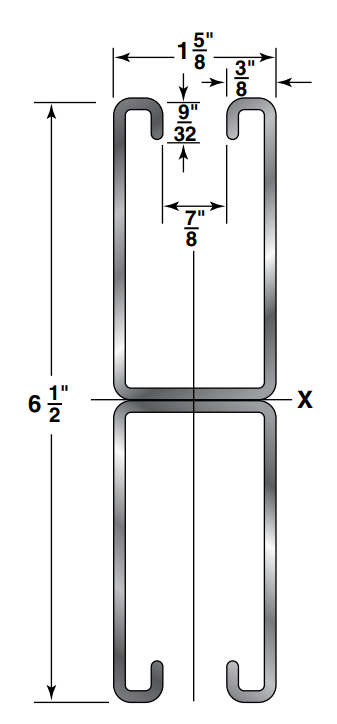

6-1/2" x 1-5/8"
Weight/100 ft. – 616 lbs.
Twice the height of the standard 1-5/8" channel for increased load capacity
Ideal for heavy loads, long spans, and column applications

Download

Product data sheet

Add to Favorites

Specifications

Material

H-Strut channels are manufactured from high quality, domestically sourced structural steel and roll formed into shape. These products comply with MFMA-4 standards.

Aluminum (Type 6063-T6) – ASTM B221
Plain Steel – ASTM A1011 SS Grade 33
Pre-Galvanized Steel – ASTM A653 SS Grade 33, G90
Stainless Steel (Type 304 & 316L) – ASTM A240
Other materials and specifications are available upon request.

Finishes

H-Strut is available in powder-coated and zinc trivalent. Other finishes are available upon request.

Hot-Dip Galvanized – ASTM A123
Zinc Trivalent Chromium (ZTC) – ASTM B633
Powder-Coated

Loading Data

Load capacities include a safety factor of 1.68 for beam loads and 1.80 for column loads.
When calculating load at the center of the span, multiply the load from the table by 0.5 and deflection by 0.8.
When calculating beam and column loads for aluminum, multiply by 33%.

General

H-Strut channels are manufactured in accordance with the ANSI North American Specification for the Design of Cold-Formed Steel Structural Members, 2016 Edition.

Welding

Channel combinations of two or more elements are spot welded together to form multiple combinations. Welds are placed two inches on center throughout the length of the sections.

Length Information

Standard lengths are 10' and 20' with a tolerance of ±⅛". Other lengths are available upon request.

NOTES

Other materials, finishes, lengths, and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-112-OSA strut channels are produced in standard 10' and 20'lengths with a tolerance of ±¹⁄₈". Other lengths are available upon request..

Other lengths are available upon request.

Span or Unbraced Height (in)	Static Beam Load (X-X Axis)	Max. Allowable Load at Slot Face (lbs)	Column Loading Data	Max Allowable Uniform Load (lbs)	Deflection at Uniform Load (in)	Uniform Load at Deflection	Max. Column Load Applied at C.G.	Span/180 Deflection (lbs)	Span/240 Deflection (lbs)	Span/360 Deflection (lbs)	Weight of Channel (lbs)	k=.65 (lbs)	k=.80 (lbs)	k=1.0 (lbs)	k=1.2 (lbs)
12	6,890*	0.00	6,890*	6,890*	6,890*	6.3	10,910	41,100	40,940	40,680	40,360	12,630	12,450	12,290	12,100
18	6,890*	0.01	6,890*	6,890*	6,890*	9.4	10,860	40,720	40,360	39,780	39,080	12,510	12,340	12,100	11,800
24	6,890*	0.02	6,890*	6,890*	6,890*	12.5	10,780	40,180	39,560	38,550	37,360	12,360	12,200	11,950	11,630
30	6,890*	0.02	6,890*	6,890*	6,890*	15.7	10,690	39,500	38,550	37,030	35,250	12,170	12,010	11,750	11,410
36	6,890*	0.04	6,890*	6,890*	6,890*	18.8	10,570	38,690	37,360	35,250	32,840	12,040	11,870	11,610	11,260
42	6,890*	0.05	6,890*	6,890*	6,890*	21.9	10,440	37,750	35,990	33,260	30,200	11,900	11,730	11,470	11,120
48	6,890*	0.06	6,890*	6,890*	6,890*	25.0	10,280	36,700	34,480	31,100	27,420	11,720	11,540	11,270	10,920
60	6,450	0.10	6,450	6,450	6,450	31.3	9,900	34,280	31,100	26,470	21,740	11,260	11,090	10,820	10,480
72	5,370	0.14	5,370	5,370	5,370	37.6	9,440	31,540	27,420	21,740	16,370	10,720	10,550	10,290	9,950
84	4,610	0.19	4,610	4,610	4,610	43.8	8,890	28,590	23,620	17,230	12,030	9,370	9,200	8,940	8,590
96	4,030	0.25	4,030	4,030	4,030	50.1	8,260	25,520	19,890	13,270	9,210	7,150	7,000	6,800	6,550
108	3,580	0.32	3,580	3,580	3,370	56.3	7,550	22,440	16,370	10,480	7,280	5,690	5,530	5,360	5,160
120	3,220	0.39	3,220	3,220	2,730	62.6	6,790	19,440	13,270	8,490		4,870	4,710	4,540	4,350
144	2,690	0.57	2,690	2,690	1,900	75.1	5,510	13,960	9,210			3,670	3,510	3,340	3,140
168	2,300	0.77	2,300	2,090	1,390	87.6	4,520	10,250	6,770			2,960	2,800	2,620	2,410
180	2,150	0.89	2,150	1,820	1,210	93.9		8,930				2,730	2,580	2,410	2,210
192	2,020	1.01	2,020	1,600	1,070	100.2		7,850				2,540	2,400	2,240	2,040
216	1,790	1.27	1,690	1,260	840	112.7						2,360	2,220	2,060	1,870
240	1,610	1.57	1,370	1,020	680	125.2						2,170	2,030	1,870	1,680
