Name: E-505
Brand: Haydon
Availability: InStock

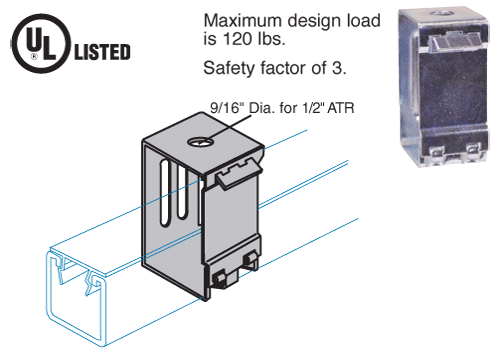

E-505 snap-type fluorescent fixture hanger, UL listed, for H-STRUT surface raceway systems.

E-505 Snap Type Fluorescent Fixture Hanger for H-STRUT Channels

E-505

<div class="specifications-wrapper d-flex">

 <div class="single-specification-wrapper single-specification-0">
 <div class="single-specification">
 <div class="illustration">
 <img src="/media/website/illustrations/finishes.svg" alt="material">
 </div>
 <h4 class="font-light">Material</h4>
 Channels, Closure Strips and Accessories are manufactured from the following materials:
 <ul><li>Hot Rolled Steel Sheet - A-1011-04-SS</li><li>Cold Rolled Steel Sheet - ASTM A-1008</li><li>Stainless Steel-Type 304/316 - ASTM A-240</li></ul>
 </div>
 </div>

 <div class="single-specification-wrapper single-specification-1">
 <div class="single-specification">
 <div class="illustration">
 <img src="/media/website/illustrations/finishes.svg" alt="finish">
 </div>
 <h4 class="font-light">Finish</h4>
 Channels, Closure Strips and Accessories are available in the following finishes:
 <ul><li>Pre-Galvanized  - ASTM A-653-G90</li><li>Hot Dipped Galvanized - ASTM A-123</li><li>Zinc Trivalent Chromium - ASTM B-633-85</li><li>Powder Coated Supr-Green  - ASTM B-117</li><li>Plastic: Green, white, black Other finishes available upon request</li></ul>
 </div>
 </div>
</div>
