E-504
Overview

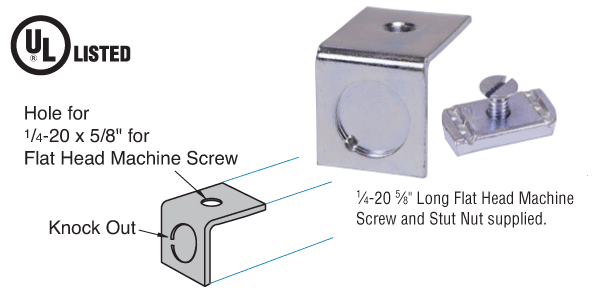

Conduit End CapH-STRUT Conduit End Caps With Knock Out are designed to fit all H-STRUT channels to make a surface raceway. Electrical Fittings are also designed to fit all H-STRUT channels.
Wt. 2#/C
Download
Product data sheet
Add to Favorites
Specifications
| Model | Conduit Size | UL LISTED | For Use With | Wt./100 Pcs. |
|---|---|---|---|---|
| E-504-1-1/2" KO | 1/2" | - | H-122 | 27 |
| E-504-2-1/2" KO | 1/2" | UL | H-132 | 24 |
| E-504-2-3/4" KO | 3/4" | UL | H-132 | 24 |
| E-504-3-1/2" KO | 1/2" | - | H-142 | 21 |
Length
for 1/2" or 3/4" Conduit
Material
Channels, Closure Strips and Accessories are manufactured from the following materials:
- Hot Rolled Steel Sheet - A-1011-04-SS
- Cold Rolled Steel Sheet - ASTM A-1008
- Stainless Steel-Type 304/316 - ASTM A-240
Finish
Channels, Closure Strips and Accessories are available in the following finishes:
- Pre-Galvanized - ASTM A-653-G90
- Hot Dipped Galvanized - ASTM A-123
- Zinc Trivalent Chromium - ASTM B-633-85
- Powder Coated Supr-Green - ASTM B-117
- Plastic: Green, white, black Other finishes available upon request
