Universal Clamps (C-1104)
Overview

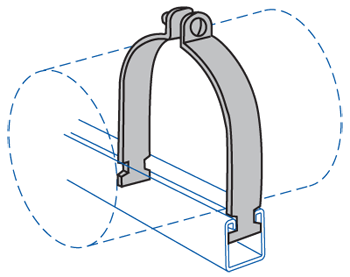

C-1104H-STRUT Universal Clamps are all manufactured to fit into the standard openings of 1-5/8" channel to support runs of piping where desired, to secure the pipe in place.
- Universal Two-Piece Strut Clamps come in Electro-Galvanized (EZN) finish.
- Other finishes available upon request.
- When ordering specify figure number and O.D. size.
Download
Product data sheet
Add to Favorites
Specifications
| Nom. Size for E.M.T. Rigid Copper Clamps | O.D. Range Min./Max. | Wt./100 Pcs. | Std. Pkg. |
|---|---|---|---|
| 3/8" | 0.557 to 0.675 | 12 | 100 |
| 1/2" | 0.706 to 0.840 | 13 | 100 |
| 3/4" | 0.922 to 1.050 | 14 | 100 |
| 1" | 1.163 to 1.315 | 18 | 100 |
| 1-1/4" | 1.510 to 1.660 | 21 | 50 |
| 1-1/2" | 1.740 to 1.900 | 23 | 50 |
| 2" | 2.197 to 2.375 | 25 | 50 |
Design Loads
Tests performed in accordance with MFMA (Metal Framing Manufacturer’s Association) specifications with a safety factor of 3.0. Loads based on independent laboratory testing.
| Nominal Pipe Size | Slip Thru (lbs) | Slip Along (lbs) | Pullout (lbs) |
|---|---|---|---|
| 1/2" | 213 | 77 | 907 |
| 3/4" | 142 | 169 | 992 |
| 1" | 131 | 174 | 806 |
| 1-1/4" | 354 | 150 | 1,160 |
| 1-1/2" | 335 | 336 | 1,564 |
| 2" | 405 | 506 | 1,572 |
