Supr-Heat 1000
Overview
Supr-Heat 1000-1A Complete Baseboard Heater- The perfect alternative to bulky, commercial enclosures for demanding heat requirements.
- Especially suited for problem areas of high heat loss.
- Comes with 18-gauge standard front covers.
- End caps not included, must buy separately.
- Additional accessories sold separately, see Baseboard Accessories.
Notes:
- Complete assembly and cover only are stocked in 2' -3' - 4' - 5' - 6' - 7' - 8' and 10' lengths.
- Element only is stocked in 2' - 3' - 4' - 5' - 6' - 7' and 8' lengths.
- Other lengths are available upon request.
- Complete assembly and cover only are packed 44 pcs per skid.
- One support cradle supplied, at no charge, with every 2 ft. of steel element.
- Joiner sets are not packed with the 1000 series (must be ordered separately).
Add to Favorites
Specifications
| Available Lengths (ft) | Nominal Tube Size | Finished Dimensions (H x W) | Finish | Weight (lbs/ft) | Thickness | Fin/ft | Pieces/Carton | Pieces/Skid |
|---|---|---|---|---|---|---|---|---|

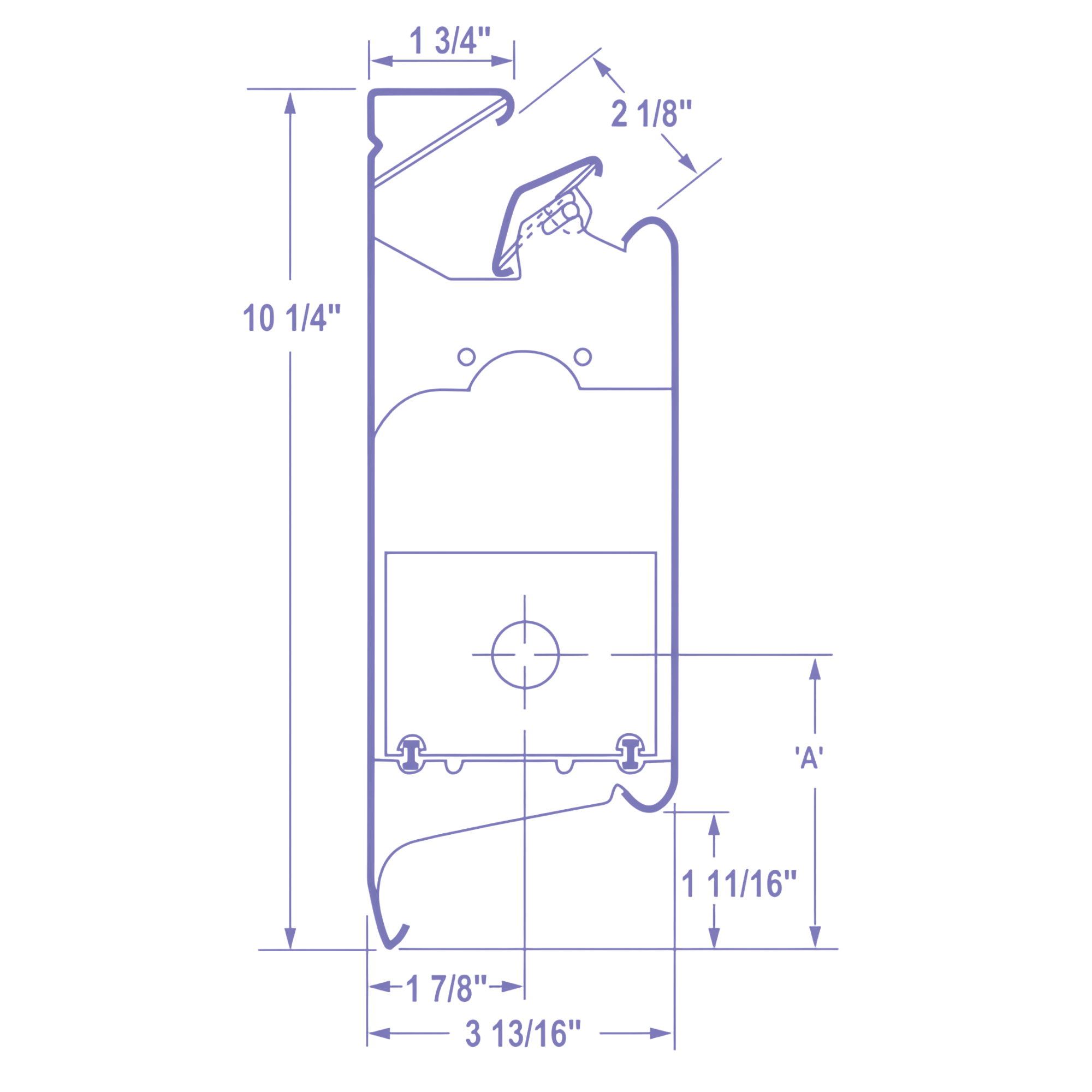

| 2, 3, 4, 5, 6, 7, 8, 10 | 3/4" Copper | 2-1/2" x 3-1/4" | Natural | 4 | 0.015 | 55 | 1 | 44 |
HEATING CAPACITIES, BTU PER HR PER LIN. FT. 65 DEF; ENTERING AIR TEMPERATURE
| Model/Product Name | Nom. Tube Size | Thickness | Fin/Ft. | Water Rate GPM | Hot Water RatingsAverage Water Temperature °F | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150° | 160° | 170° | 180° | 190° | 200° | 210° | 220° | 230° | 240° | |||||
| Supr-Heat 1000 | 3/4" Copper | 0.015 | 55 | 4 | 630 | 740 | 850 | 950 | 1,050 | 1,150 | 1,260 | 1,360 | 1,470 | 1,570 |
| Supr-Heat 1000 | 3/4" Copper | 0.015 | 55 | 1 | 600 | 700 | 800 | 900 | 990 | 1,090 | 1,190 | 1,290 | 1,390 | 1,490 |
FACTORS FOR RATINGS AT FLOW OTHER THAN STANDARD AND PRESSURE DROP VALVES
| Rate of Flow GPM | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 |
|---|---|---|---|---|---|---|---|---|---|---|
| Factor | 1.000 | 1.016 | 1.028 | 1.038 | 1.045 | 1.051 | 1.057 | 1.062 | 1.067 | 1.074 |
| Pressure Drop 3⁄4 Tube Mill in. per ft. | 47 | 96 | 157 | 230 | 320 | 420 | 525 | 650 | 775 | 1,060 |
Technical Information
| Part # | Model/Product Name | Description | Length (ft.) | Weight (lbs/ft.) | Pieces/Carton | Pieces/Skid |
|---|---|---|---|---|---|---|
| 64005 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 3 | 4 | 1 | 44 |
| 64010 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 4 | 4 | 1 | 44 |
| 64015 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 5 | 4 | 1 | 44 |
| 64020 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 6 | 4 | 1 | 44 |
| 64025 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 7 | 4 | 1 | 44 |
| 64030 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 8 | 4 | 1 | 44 |
| 64035 | Supr-Heat 1000 Complete | Baseboard complete with 3/4" element with 2-1/2" x 3-1/4" aluminum fins and cover(end caps not included) | 10 | 4 | 1 | 44 |
| 64040 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 2 | 1.5 | 1 | |
| 64045 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 3 | 1.5 | 1 | |
| 64050 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 4 | 1.5 | 1 | |
| 64055 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 5 | 1.5 | 1 | |
| 64060 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 6 | 1.5 | 1 | |
| 64065 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 7 | 1.5 | 1 | |
| 64070 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 8 | 1.5 | 1 | |
| 64075 | Supr-Heat 1000 Cover Only | Baseboard cover/enclosure only | 10 | 1.5 | 1 | |
| 64100 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 2 | 1 | 4 | |
| 64102 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 3 | 1 | 4 | |
| 64105 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 4 | 1 | 4 | |
| 64107 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 5 | 1 | 4 | |
| 64108 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 6 | 1 | 4 | |
| 64110 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 7 | 1 | 4 | |
| 64112 | Supr-Heat 1000 Element Only | 3/4" Copper Tube with 2-1/2" x 3-1/4" Aluminum Fins | 8 | 1 | 4 |
